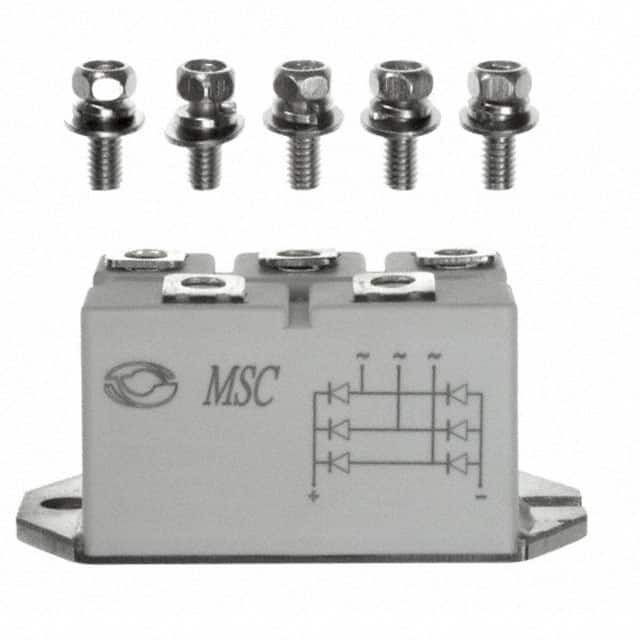

MSD52-12
Same model may have multiple batches, images only for reference.

MSD52-12

Part No MSD52-12
Manufacturer Microsemi Corporation
Catalog Bridge Rectifiers
Description BRIDGE RECT 3PHASE 1.2KV 50A SM2 / Bridge Rectifier Three Phase Standard 1.2 kV Chassis Mount SM2
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Microsemi Corporation
Package Bulk
Product Status Obsolete
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 1.2 kV
Current - Average Rectified (Io) 50 A
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 150 A
Current - Reverse Leakage @ Vr 300 µA @ 1200 V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case M2
Supplier Device Package SM2
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 928164-MSD52-12
Ultra Librarian 3D Model Ultra Librarian MSD52-12 CAD Model

Description

The 928164-MSD52-12 is an obsolete three-phase bridge rectifier diode designed for various applications.

  • Current Average Rectified: 50 A
  • Voltage Forward @ Maximum Current: 1.8 V
  • Current Reverse Leakage: 300 µA @ 1200 V
  • Voltage Peak Reverse: 1.2 kV
