Same model may have multiple batches, images only for reference.

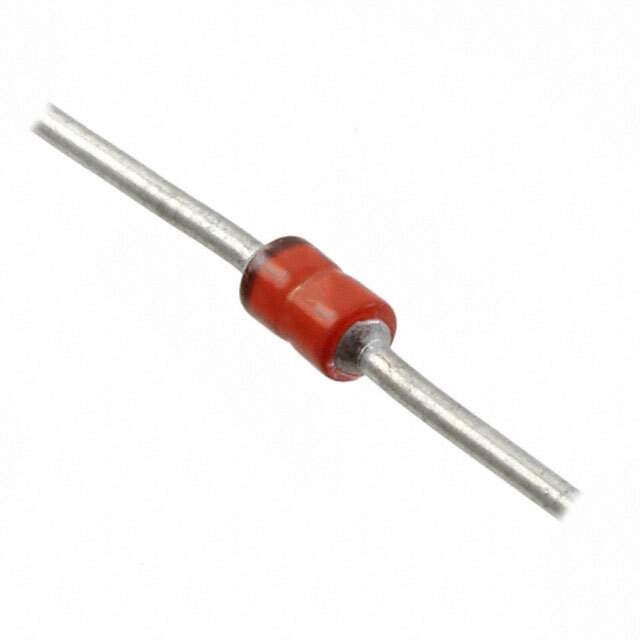

MXP5KE20AE3 Real Image
Same model may have multiple batches, images only for reference.

MXP5KE20AE3

Part No MXP5KE20AE3
Manufacturer Microsemi Corporation
Catalog TVS - Diodes
Description TVS DIODE 20VWM 32.4VC DO204AL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Features 32.4V Clamp 15.4A Ipp Tvs Diode Through Hole DO-204AL (DO-41)
Manufacturer Microsemi Corporation
Series Military, MIL-PRF-19500
Package Bulk
Part Status Obsolete
Operating Temperature Range -65°C ~ 150°C (TJ)
Mounting Through Hole
Package DO-204AL, DO-41, Axial
Case / Package DO-204AL (DO-41)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1086-12912, 1086-12912-MIL
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905112-MXP5KE20AE3
Ultra Librarian 3D Model Ultra Librarian MXP5KE20AE3 CAD Model

Description

The Microsemi Corporation TVS diode is a military-grade component that is part of the MIL-PRF-19500 series.

  • Clamp: 32.4V
  • Ipp: 15.4A
  • Operating Temperature: -65°C to 150°C (TJ)
  • Package: DO-204AL (DO-41) axial
  • Mounting: through-hole
  • Status: obsolete
  • REACH: unaffected
  • ECCN: EAR99
  • Package Quantity: 1
  • HTSUS: 8541.10.0080
  • Other Part Numbers: 1086-12912 and 1086-12912-MIL
