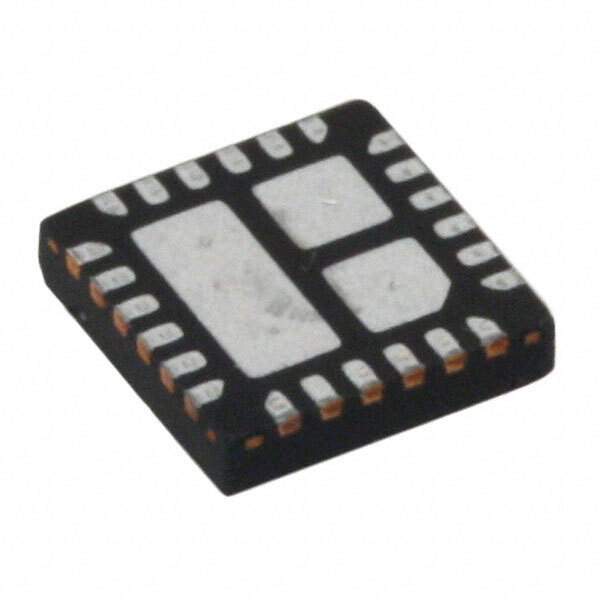

NX9415CMTR Real Image
Same model may have multiple batches, images only for reference.

NX9415CMTR

Part No NX9415CMTR
Manufacturer Microsemi Corporation
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK ADJ 5A SYNC MCM-24L / Conv DC-DC 8V to 22V Synchronous Step Down Single-Out 5V 5A 24-Pin MCM EP Tube
Datasheet
NX9415CMTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Microsemi Corporation
Packaging Reel package
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Input Voltage MIN 9V
Voltage Input MAX 22V
Output Voltage 0.8V
Output Voltage MAX 15.62V
Output Current 5A
Frequency - Switching 200kHz ~ 2.2MHz
Synchronous Rectifier Yes
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 24-VQFN Exposed Pad
Manufacturer Package 24-MCM (4x4)
Win Source Part Number 790881-NX9415CMTR
Popularity Medium
Supply and Demand Status Limited
Family Name NX9415
Introduction Date December 28, 2009
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian NX9415CMTR CAD Model

Description

The NX9415CMTR is an adjustable step-down buck converter manufactured by Microsemi Corporation.

  • Frequency Switching Range: 200kHz to 2.2MHz
  • Package: 24-VQFN exposed pad
  • Rectifier: synchronous
  • Output Configuration: positive
  • Output Current: 5A
  • Output Voltage: 0.8V
  • Maximum Output Voltage: 15.62V
  • Input Voltage Range: 9V to 22V
  • Introduction Date: December 28, 2009
  • EOL Date: 2026
  • Supply and Demand Status: limited
