Same model may have multiple batches, images only for reference.

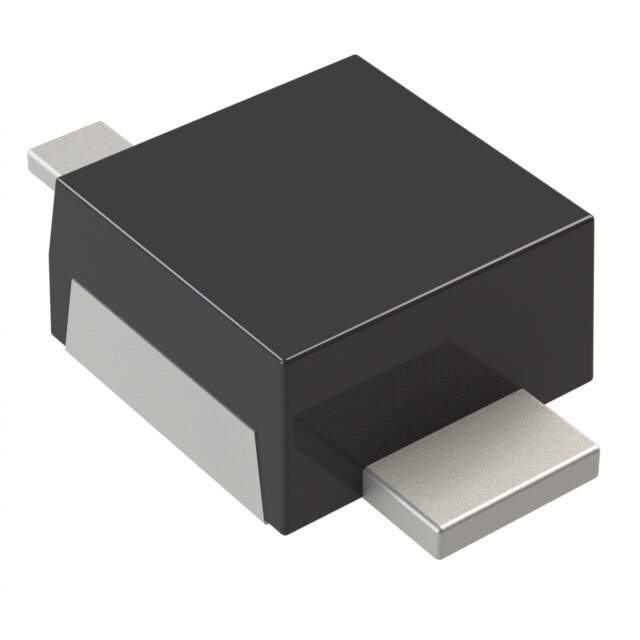

UPT28E3/TR13 Real Image
Same model may have multiple batches, images only for reference.

UPT28E3/TR13

Part No UPT28E3/TR13
Manufacturer Microsemi Corporation
Catalog TVS - Diodes
Description TVS DIODE 28VWM POWERMITE
Datasheet
UPT28E3/TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Microsemi Corporation
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 28V
Minimum Breakdown Voltage 31V
Max Clamping Voltage 47.8V
Peak Pulse Current(Ippm) 3.13A
Power Dissipation - Pd 1000W (1kW)
Applications General Purpose
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package Powermite 1 (DO216-AA)
Win Source Part Number 101610-UPT28E3/TR13
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UPT28E3/TR13 CAD Model

Description

The Microsemi Corporation UPT28E3/TR13 is a popular zener diode that is designed for use in a variety of applications.

  • GPTDescription: With a stand-off voltage of 28V and a peak pulse current rating of 3.13A, this diode is ideal for use in voltage regulation circuits.
  • GPTDescription: The UPT28E3/TR13 is packaged in a small Powermite 1 (DO216-AA) package and is rated for operation over a wide temperature range of -65°C to 150°C.
  • GPTDescription: This diode is a popular choice for use in power supplies, voltage regulators, and other electronic circuits.
