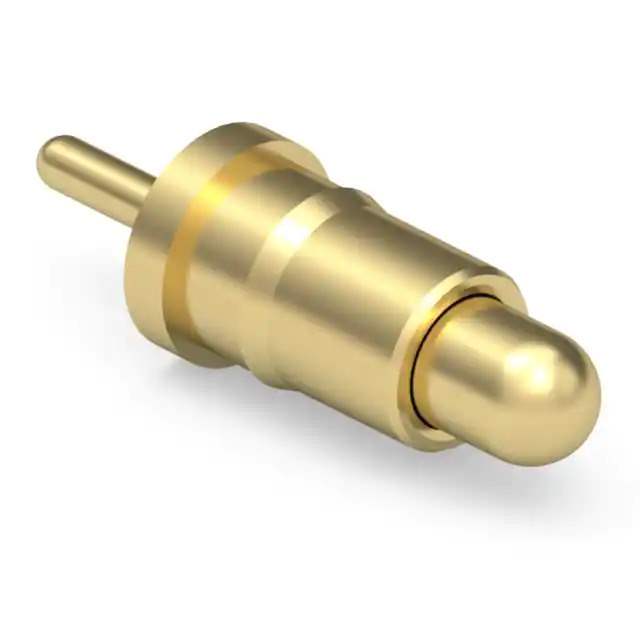

0906-8-15-20-76-14-11-0 Real Image
Same model may have multiple batches, images only for reference.

0906-8-15-20-76-14-11-0

Part No 0906-8-15-20-76-14-11-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Contacts, Spring Loaded and Pressure
Description CONTACT SPRING LOADED T/H GOLD / Contact Spring Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Contacts, Spring Loaded (Pogo Pins), and Pressure
Mfr Mill-Max Manufacturing Corp.
Series 906
Package Bulk
Product Status Active
Contact Type Sleeve & Plunger (Pogo Pins)
Mounting Type Through Hole
Maximum Working Height 0.155" (3.94mm)
Recommended Working Height 0.128" (3.24mm)
Minimum Working Height 0.100" (2.54mm)
Pad Layout Dimension Circular - 0.072" (1.83mm) (TH)
Operating Force - Initial 15gf
Operating Force - Mid Compression 60gf
Plunger Size 0.042" (1.07mm) Dia
Mating Cycles 1000000
Contact Material Brass Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Current Rating (Amps) 5.2A
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 0906-8
Standard Package 25,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853442-0906-8-15-20-76-14-11-0
Ultra Librarian 3D Model Ultra Librarian 0906-8-15-20-76-14-11-0 CAD Model

Description

The 853442-0906-8-15-20-76-14-11-0 is a sleeve and plunger type contact commonly known as Pogo Pins and is manufactured by Mill-Max Manufacturing Corp.

  • Type: Sleeve and Plunger
  • Application: Connectors and Interconnects
  • Contact Material: Brass Alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: 20.0µin (0.51µm)
  • Current Rating: 5.2A
  • Mounting Type: Through Hole
  • Recommended Working Height: 0.128" (3.24mm)
  • Minimum Working Height: 0.100" (2.54mm)
  • Operating Force (Initial): 15gf
  • Operating Force (Mid-Compression): 60gf
  • Temperature Range: -55°C to 125°C
  • Mating Cycle: 1,000,000
  • Package: Bulk
  • Standard Package: 25,000 pcs
