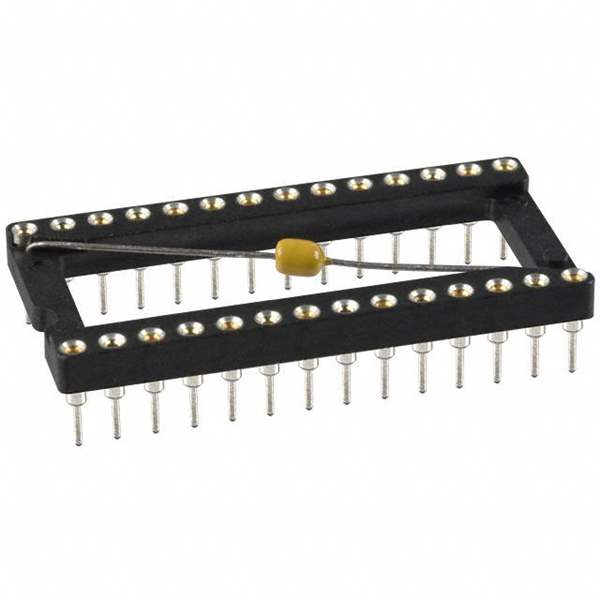

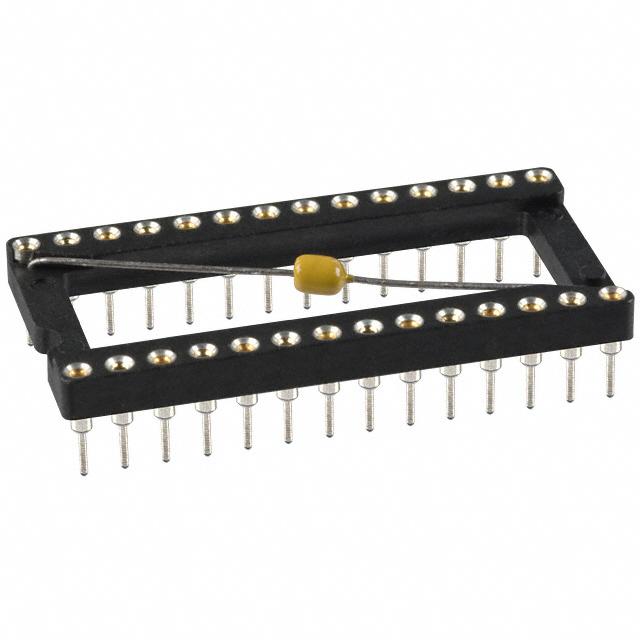

110-93-628-41-801000 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

110-93-628-41-801000

Part No 110-93-628-41-801000
Manufacturer Mill-Max Manufacturing Corp.
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 28POS GOLD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Mill-Max Manufacturing Corp.
Packaging Tube/Rail
Status Active
Type DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) 28 (2 x 14)
Pitch - Mating 2.54mm
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Material - Mating Beryllium Copper
Mounting Through Hole
Features Open Frame, Decoupling Capacitor
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin-Lead
Contact Finish Thickness - Post 200μin (5.08μm)
Contact Material - Post Brass Alloy
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Temperature Range - Operating -55°C to 125°C
Termination Post Length 0.125" (3.18mm)
Current Rating 3A
Win Source Part Number 1032099-110-93-628-41-801000
Popularity Medium
Supply and Demand Status Balance
Quantity per package 14
Ultra Librarian 3D Model Ultra Librarian 110-93-628-41-801000 CAD Model

Description

The Mill-Max Manufacturing Corp. 1032099-110-93-628-41-801000 is a DIP connector with a row spacing of 0.6" (15.24mm).

  • Row Spacing: 0.6" (15.24mm)
  • Positions/Pins: 28 (2 x 14)
  • Pitch: 2.54mm
  • Material: Polycyclohexylenedimethylene Terephthalate (PCT) and Polyester
  • Current Rating: 3A
  • Operating Temperature Range: -55°C to 125°C
