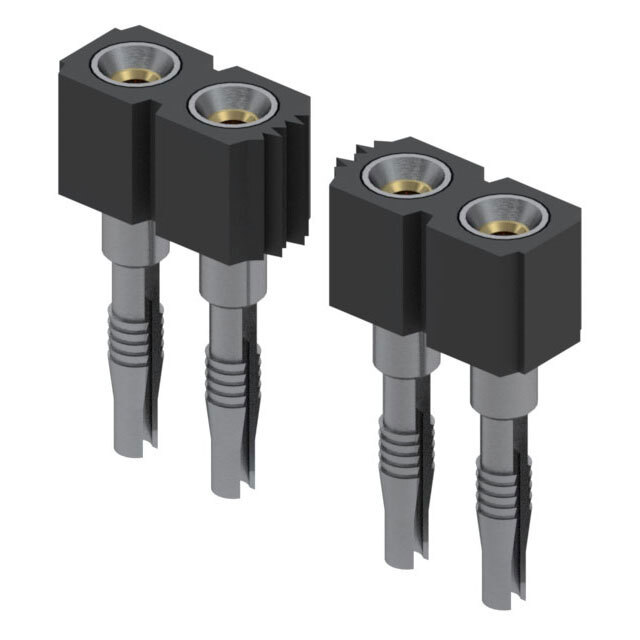

Same model may have multiple batches, images only for reference.
346-93-112-41-013000 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

346-93-112-41-013000

Part No 346-93-112-41-013000
Manufacturer Mill-Max Manufacturing Corp.
Catalog Sockets for ICs, Transistors
Description CONN SOCKET SIP 12POS GOLD / Conn Socket Strip SKT 12 POS 2.54mm Press Fit ST Thru-Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Mill-Max Manufacturing Corp.
Series 346
Packaging Bulk
Type SIP
Number of Positions or Pins (Grid) 12 (1 x 12)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Material - Mating Beryllium Copper
Mounting Style Through Hole
Termination Press-Fit
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin-Lead
Contact Finish Thickness - Post 200μin (5.08μm)
Contact Material - Post Brass Alloy
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature Range -55°C ~ 125°C
Termination Post Length 0.175" (4.45mm)
Current Rating 3A
Win Source Part Number 772361-346-93-112-41-013000
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name 346
Introduction Date March 07, 2009
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 346-93-112-41-013000 CAD Model

Description

The Mill-Max Manufacturing Corp. 346 series SIP connector is a 12-position, through-hole, press-fit termination connector designed for use in electronic applications.

  • Pitch: 0.100 inches (2.54mm)
  • Current Rating: 3A
  • Contact Material (Mating): beryllium copper
  • Contact Finish: gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Housing Material: polycyclohexylenedimethylene terephthalate (PCT), polyester
  • Post Length: 0.175 inches (4.45mm)
  • Contact Finish: tin-lead
  • Contact Finish Thickness: 200μin (5.08μm)
  • Contact Material: brass alloy
  • Operating Temperature: -55°C to 125°C
  • Packaging: bulk
