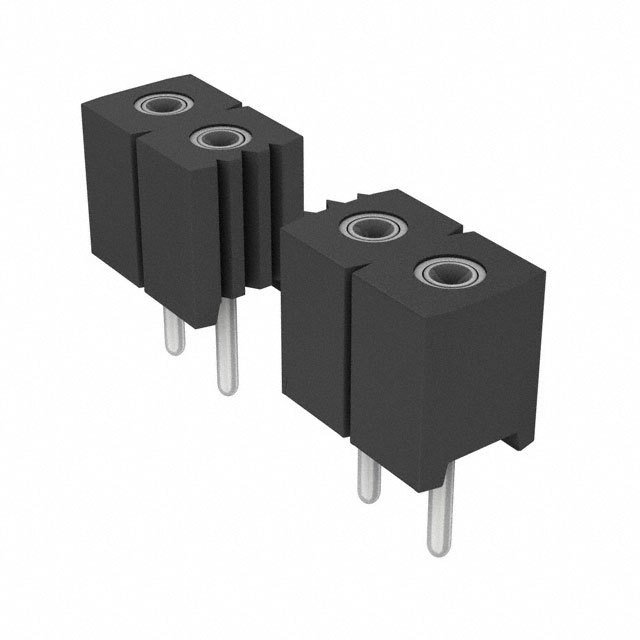

Same model may have multiple batches, images only for reference.

801-93-007-10-012000

Name: 801-93-007-10-012000
Brand: Mill-Max Manufacturing Corp.
SKU: 447176
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	801-93-007-10-012000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	CONN SOCKET STRIP LOPRO 7POS
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Packaging	Bulk
Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	7
Number of Positions Loaded	All
Pitch - Mating	2.54mm
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Insulation Color	Black
Insulation Height	0.165" (4.20mm)
Contact Length - Post	0.125" (3.18mm)
Temperature Range - Operating	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin-Lead
Current Rating	4.5A
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape	Circular
Contact Finish Thickness - Post	200μin (5.08μm)
Win Source Part Number	1032304-801-93-007-10-012000
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	1
Ultra Librarian 3D Model	Ultra Librarian 801-93-007-10-012000 CAD Model

Alternative Products

Description

The Mill-Max Manufacturing Corp. female socket connector is designed for use in board-to-board applications.

Fastening Type: Push-Pull
Termination: Solder
Current Rating: 4.5A
Package Quantity: 1
Length Overall: 0.125" (3.18mm)
Insulation Height: 0.165" (4.20mm)
Temperature Range: -55°C to 125°C
