Same model may have multiple batches, images only for reference.

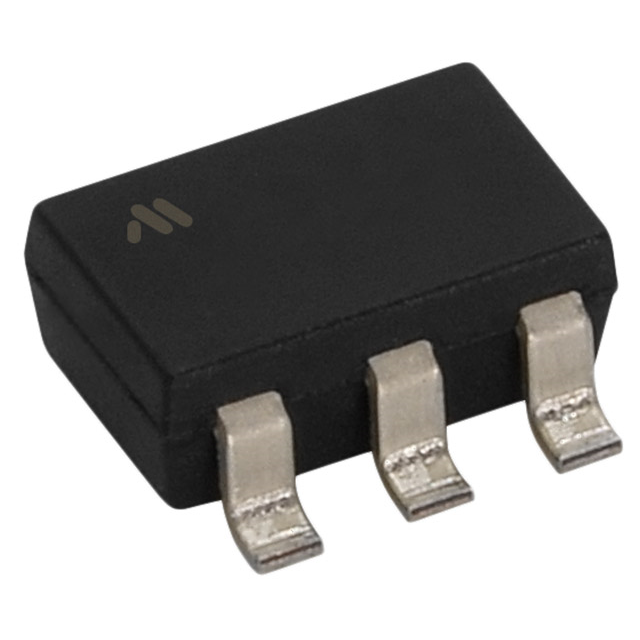

MM3220AA1NRH Real Image
Same model may have multiple batches, images only for reference.

MM3220AA1NRH

Part No MM3220AA1NRH
Manufacturer Mitsumi
Catalog PMIC - Battery Management
Description IC, TWO CELL, BATTERY PROTECTION  /  Battery Battery Protection IC Lithium Ion/Polymer SOT-26A
Datasheet
MM3220AA1NRH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Battery Management
Mfr Mitsumi Electric Company Ltd
Series MM3220
Package Tape & Reel
Function Battery Protection
Battery Chemistry Lithium Ion/Polymer
Number of Cells 2
Fault Protection Over Current, Over Voltage, Short Circuit
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case SOT-23-6
Supplier Device Package SOT-26A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2508-MM3220AA1NRHTR,2508-MM3220AA1NRHCT,2508-MM3220AA1NRHDKR
Standard Package 3,000
Win Source Part Number 1107768-MM3220AA1NRH
Ultra Librarian 3D Model Ultra Librarian MM3220AA1NRH CAD Model

Description

The MM3220AA1NRH is a Lithium Ion/Polymer battery protection integrated circuit (IC) from the MM3220 series of Mitsumi Electric Company Ltd.

  • Protection: Over current, over voltage, and short circuit faults for 2-cell batteries
  • Package: SOT-23-6
  • Supplier Device Package: SOT-26A
  • Operating Temperature: -40°C to 85°C
  • Standard Package: 3,000 units
