Same model may have multiple batches, images only for reference.

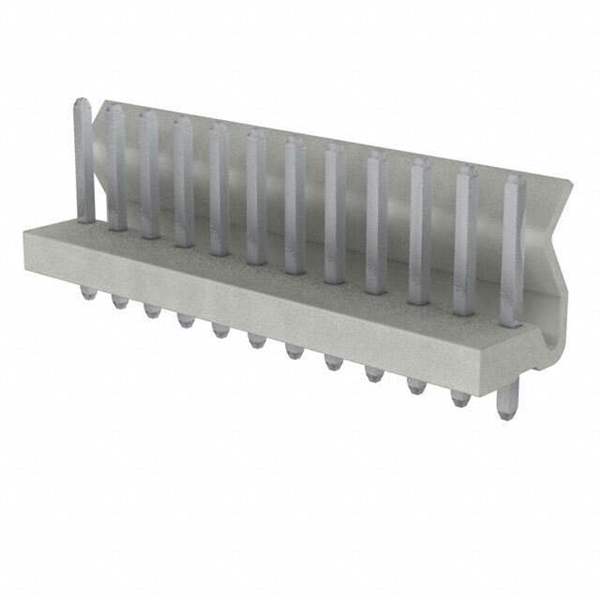

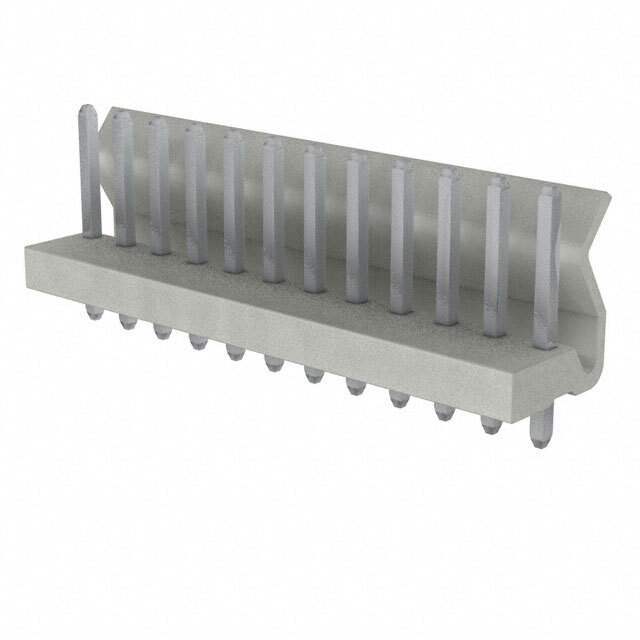

0009652128 Molex
Same model may have multiple batches, images only for reference.

0009652128

Part No 0009652128
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 3.96MM
Datasheet
0009652128 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Bag
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Ultra Librarian 3D Model Ultra Librarian 0009652128 CAD Model

Description

Connector Header Through Hole 12 position 0.156" (3.96mm)
