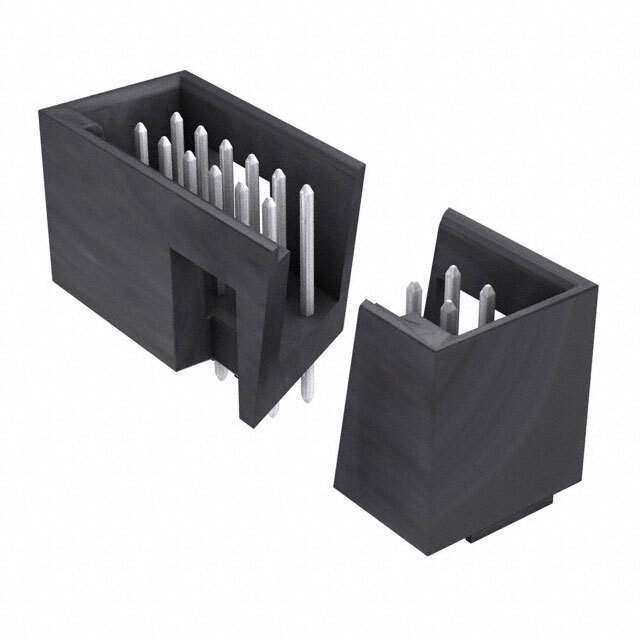

Same model may have multiple batches, images only for reference.
0015800301 Molex
Same model may have multiple batches, images only for reference.

0015800301

Part No 0015800301
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 30POS 2.54MM
Datasheet
0015800301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Tube
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Ultra Librarian 3D Model Ultra Librarian 0015800301 CAD Model

Description

Connector Header Through Hole 30 position 0.100" (2.54mm)
