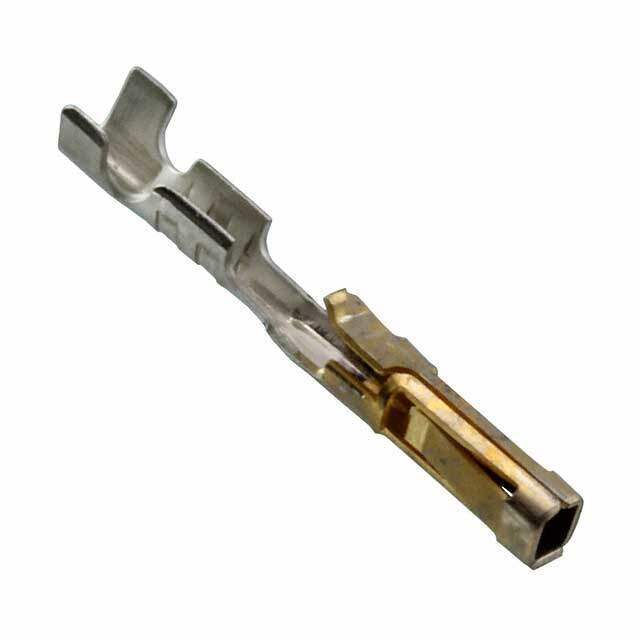

0016020082 Molex
Same model may have multiple batches, images only for reference.

0016020082

Part No 0016020082
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN SOCKET 24-30AWG CRIMP GOLD
Datasheet
0016020082 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Part Status Active
Pin or Socket Socket
Contact Termination Crimp
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Ultra Librarian 3D Model Ultra Librarian 0016020082 CAD Model

Description

SL Crimp Terminal, Series 70058, Female, 30-24 AWG, with 0.38µm Selective Gold (Au) Plated Contact, Reel
