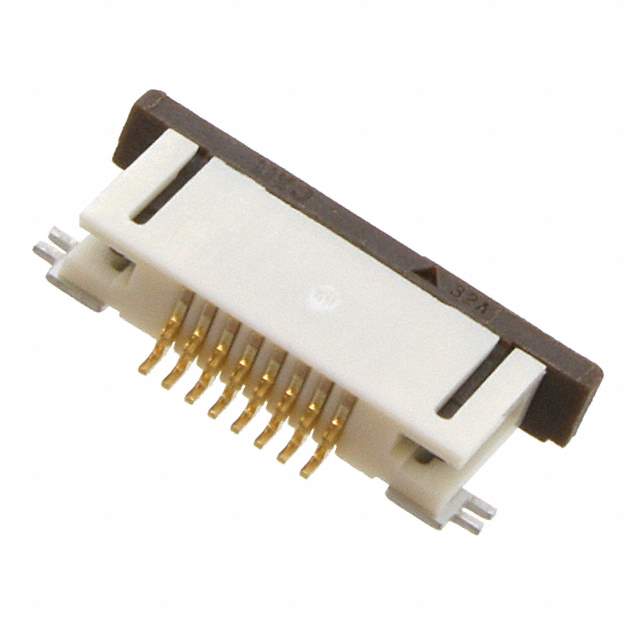

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Molex, LLC
Series Easy-On 52746
Package Tape & Reel
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 8
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA46), Nylon 4/6, Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color White
Actuator Color Brown
Mating Cycles 20
Base Product Number 052746
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 853305-0527460871
Ultra Librarian 3D Model Ultra Librarian 0527460871 CAD Model

Description

The 792114 is a FFC, FPC (Flat Flexible) Connector Assembly from Molex.

  • Series: Easy-On
  • Positions: 8
  • Pitch: 0.020" (0.50mm)
  • Features: Solder retention and zero insertion force (ZIF)
  • Termination: Solder
  • Contact Finish: Gold
  • Housing Material: Polyamide (PA46), nylon 4/6, glass filled
  • Actuator Material: Polyphenylene sulfide (PPS), glass filled
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Mounting: Surface mount, right angle
  • Temperature Range: -20°C to 85°C
  • Package: Tape & reel
  • Standard Package: 1,000 pieces
  • Locking Feature: Slide lock
  • Cable End Type: Straight, tapered
  • Housing Color: White
  • Actuator Color: Brown
  • Product Status: Active
