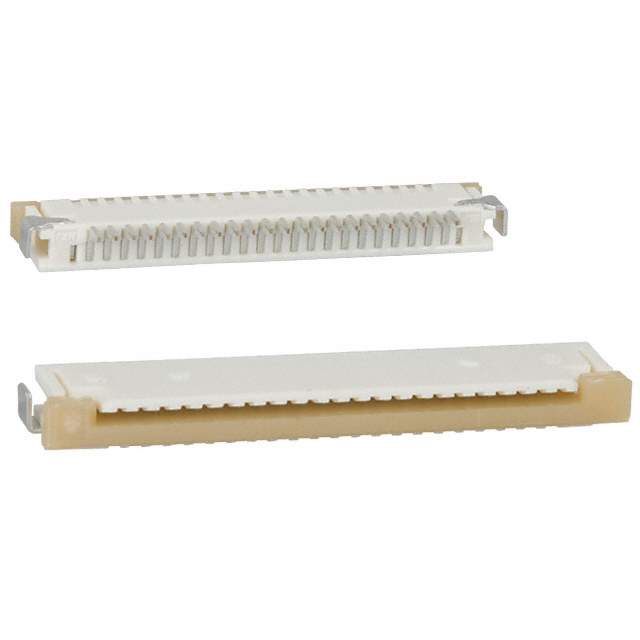

Same model may have multiple batches, images only for reference.

522072285

Name: 522072285
Brand: Molex, LLC
SKU: 1156493
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	522072285
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	FFC / FPC Board Connector, Surface Mount, Receptacle, 22, Top, 1 mm
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Actuator Material	Polyphenylene
Contact Material	Bronze
Contact Plating	Tin
Contact Resistance	20 mΩ
Country of Origin	MY
Current Rating	1 A
Depth	7.5 mm
Flammability Rating	UL94 V-0
Housing Material	Nylon
Insulation Resistance	100 MΩ
Lead Free	Lead Free
Lead Pitch	1 mm
Length	28.3 mm
Max Operating Temperature	85 °C
Min Operating Temperature	-30 °C
Mount	Surface Mount
Number of Circuits	22
Number of Contacts	22
Number of Positions	22
Number of Rows	1
Orientation	Right Angle
Packaging	Tape & Reel
Pitch	1 mm
RoHS	Compliant
Termination	Solder
Voltage Rating	125 V
Voltage Rating (DC)	125 V
Win Source Part Number	1156493-522072285
Categories	FFC,FPC(FlatFlexible)Connectors
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 522072285 CAD Model

Alternative Products

Description

The Molex 1156493-522072285 is a 22-position surface mount connector designed for flat flexible cable (FFC) and flat flexible printed circuit (FPC) applications.

Pitch: 1mm
Insulation Material: nylon
Orientation: right-angle
Maximum Current Rating: 1A
RoHS: compliant
Lead-Free: yes
Popularity: medium
