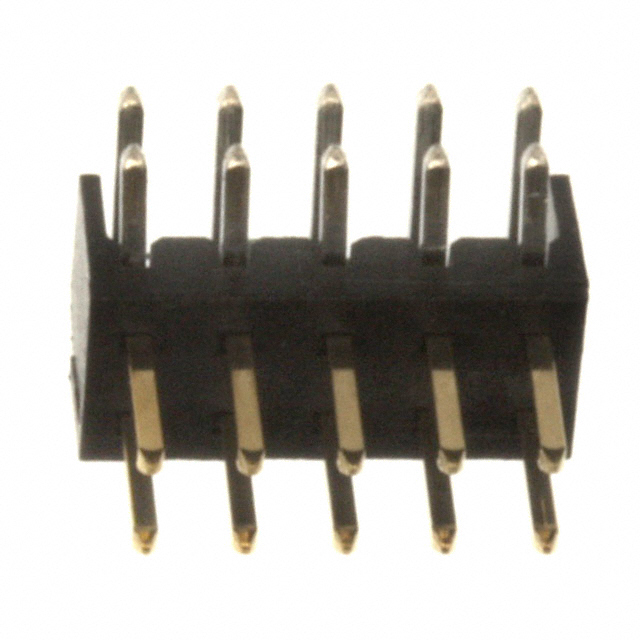

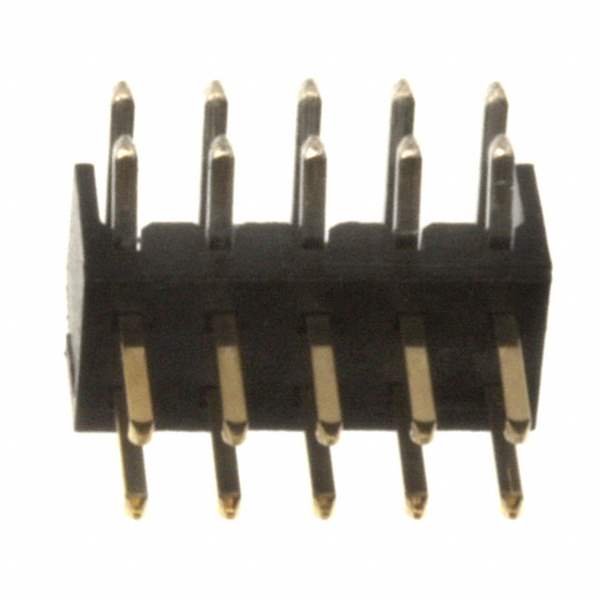

0877601016+

Part No 0877601016+
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 10POS 2MM R/A GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.102" (2.60mm)
Insulation Height 0.169" (4.30mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 78.7μin (2.00μm)
Applications Automotive, General Purpose, Telecommunications
Win Source Part Number 197202-0877601016+
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0877601016+ CAD Model

Description

0877601016+: High-Performance Connector

The 0877601016+ is engineered to provide exceptional connectivity in electronic devices. Its robust design is suitable for several demanding environments, ensuring consistent performance.

  • Applications:
  • Industrial machinery
  • Telecommunications infrastructure
  • Data communication setups
  • Military and defense equipment
  • Features & Benefits:
  • High contact reliability for uninterrupted signal transmission
  • Durable material composition withstands harsh conditions
  • Compact footprint allows for use in minimal space

This connector is ideal for ensuring strong and stable connections in varied applications.
