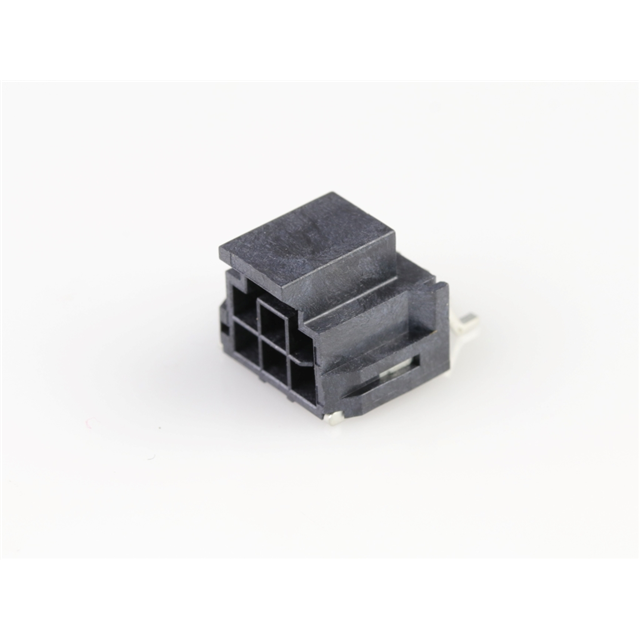

Same model may have multiple batches, images only for reference.

1054051106

Name: 1054051106
Brand: Molex, LLC
SKU: 1293216
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1054051106
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	Nano-Fit 105405
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.098" (2.50mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Insulation Height	0.247" (6.28mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Color	Black
Contact Finish Thickness - Post	30.0µin (0.76µm)
Applications	Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Base Product Number	105405
Other Names	105405-1106,900-1054051106,900-1054051106TR,1054051106,900-1054051106CT,900-1054051106DKR
Standard Package	250
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293216-1054051106
Ultra Librarian 3D Model	Ultra Librarian 1054051106 CAD Model

Alternative Products

Description

The 1293216-1054051106 is a rectangular connector - headers, male pins component manufactured by Molex.

Series: Nano-Fit 105405
Positions: 6
Contact Type: Male Pin
Positions Loaded: All positions
Termination: Solder
Fastening Type: Latch Holder
Packaging: Tape and Reel
Standard Package: 250
Pitch-Mating: 0.098 inches (2.50mm)
Shrouding: Shrouded-4 wall
Mounting: Surface Mounted, Right-Angled
Applications: Automotive, General Purpose, Industrial, Medical, Military, and Telecommunications
