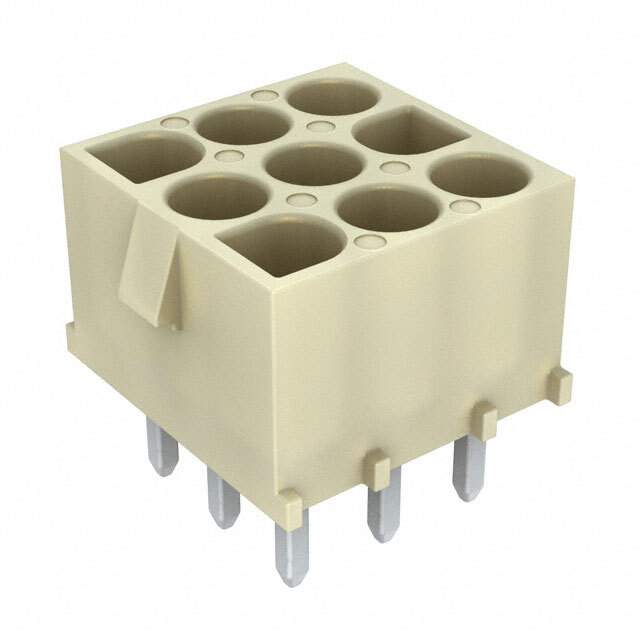

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Female Socket
Style Board to Cable/Wire
Number of Positions 9
Number of Positions Loaded All
Pitch - Mating 0.250" (6.35mm)
Number of Rows 3
Row Spacing - Mating 0.250" (6.35mm)
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 137.8µin (3.50µm)
Insulation Color Natural
Insulation Height 0.550" (13.97mm)
Contact Length - Post 0.169" (4.30mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-2
Contact Finish - Post Tin
Voltage Rating 600V
Applications Automotive, General Purpose, Industrial, Telecommunications
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Circular
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 137.8µin (3.50µm)
Base Product Number 001084
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 0010-84-4092-P,WM1267,0010844092-P,10844092-P,10-84-4092-P,10844092,WM1267-ND,10-84-4092,0010-84-4092,23-0010844092,A-42002-9A2A1
Standard Package 1
Win Source Part Number 1333116-0010844092
Ultra Librarian 3D Model Ultra Librarian 0010844092 CAD Model

Description

The 1333116-0010844092 is a rectangular connector electronic component manufactured by Molex.

  • Type: Header
  • Contact Type: Female Socket
  • Positions: 9
  • Mounting Type: Surface Mountable
  • Fastening Type: Locking Ramp
  • Voltage Rating: 600V
  • Applications: Automotive, General-Purpose, Industrial, and Telecommunications
  • MSL Level: 1 (Unlimited)
