Same model may have multiple batches, images only for reference.

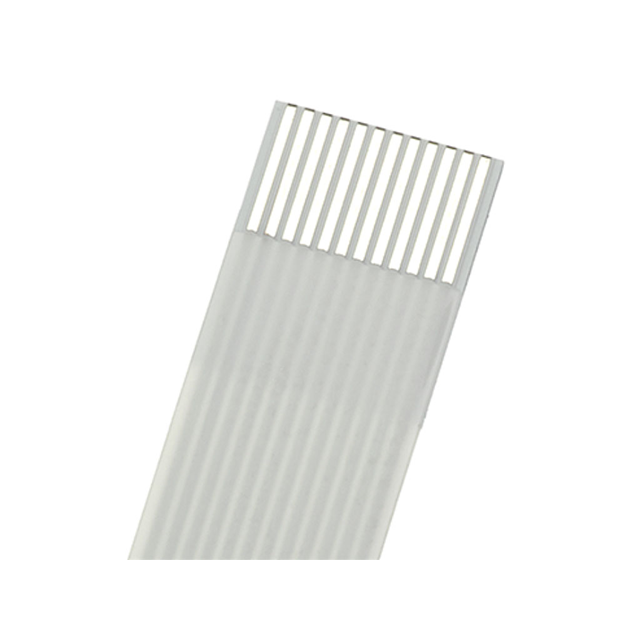

15166-1036 Real Image
Same model may have multiple batches, images only for reference.

15166-1036

Part No 15166-1036
Manufacturer Molex, LLC
Catalog Cables, Wires Fiber Optic Cables
Description FFC Jumper Cable 33Conductors 0.102m 60VAC 0.5A Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Cable Length 102 mm
Cable Pitch 500 µm
Contact Plating Tin
Country of Origin HU
ELV Compliant
Max Current Rating 500 mA
Maximum Operating Temperature 105 °C
Max Voltage Rating (AC) 60 V
Min Operating Temperature -40 °C
Mount Cable
Number of Circuits 33
Number of Conductors 33
Packaging Bulk
RoHS Compliant
Win Source Part Number 1021647-15166-1036
Categories Cables, Wires Fiber Optic Cables
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 15166-1036 CAD Model

Description

The Molex 1021647-15166-1036 is a cable assembly that consists of 33 circuits and conductors.

  • Circuits/Conductors: 33
  • Cable Length: 102mm
  • Pitch: 500µm
  • Maximum Temperature: 105°C
  • Maximum Voltage Rating: 60V AC
  • RoHS Compliant: Yes
  • Contact Plating: Tin
  • Mounted On: Cable
  • Packaging: Bulk
