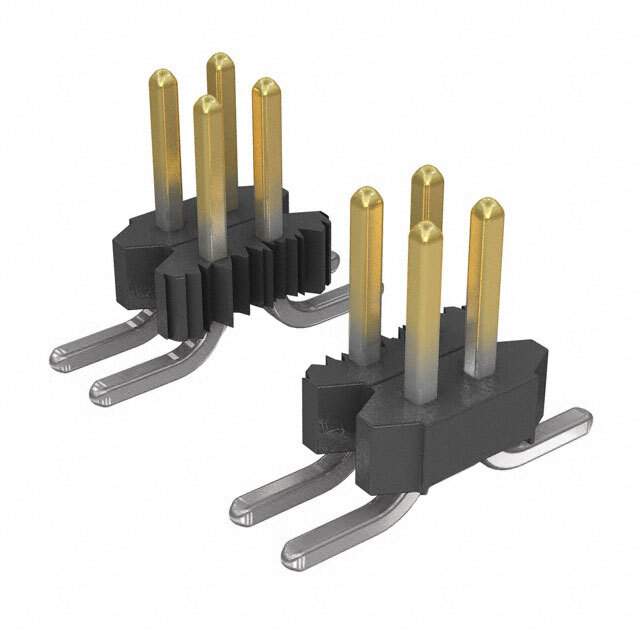

15911608 Real Image
Same model may have multiple batches, images only for reference.

15911608

Part No 15911608
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 60POS GOLD SMD
Datasheet
15911608 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tube/Rail
Status Active
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 60
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Insulation Height 0.050" (1.27mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 74.8μin (1.90μm)
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Win Source Part Number 1006568-15911608
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 15911608 CAD Model

Description

The Molex LLC Header, Breakaway Connector is a high-quality electronic component designed for use in a variety of applications, including automotive, general purpose, lighting, medical, and telecommunications.

  • Board Guide: yes
  • Insulation Material: liquid crystal polymer (LCP) and glass filled
  • Pitch-Mating: 2.54mm
  • Contact Finish-Mating: gold, with a thickness of 30μin (0.76μm)
  • Fastening Type: push-pull
  • Shrouded: unshrouded
  • Rows: two
  • Positions Loaded: 60
  • Termination: solder
  • Insulation Color: black
  • Connector Type: board to board or cable
  • Contact Shape: square
  • Contact Length-Mating: 0.240" (6.10mm)
  • Supply and Demand Status: balanced
