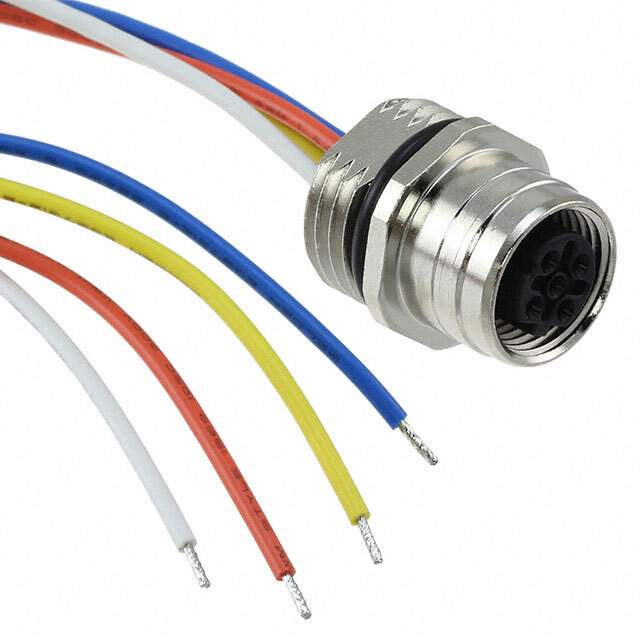

1201098001 Real Image
Same model may have multiple batches, images only for reference.

1201098001

Part No 1201098001
Manufacturer Molex, LLC
Catalog Circular Connectors
Description Cable Assembly PVC 0.019m 22AWG M12 Circular 4 POS F Ultra-Lock®
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Cable Length 19.5 mm
Connector Type Receptacle
Connector Type A Receptacle
Contact Gender Female
Contact Plating Nickel
Country of Origin PL
Current Rating 1.5 A
Fastening Type Threaded
Gender Female
Housing Material Brass
Length 19.5 mm
Max Operating Temperature 80 °C
Min Operating Temperature -10 °C
Mount Bulkhead, Cable, Panel, Rear Side Nut
Number of Conductors 4
Number of Contacts 4
Number of Pins 4
Number of Positions 4
Orientation Straight
Ratings Dust Tight, IP67, Waterproof
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination Wire Leads
Voltage Rating 125 V
Win Source Part Number 1205082-1201098001
Categories Circular Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1201098001 CAD Model

Description

The Molex receptacle connector is a high-quality connector designed for use in various electronic circuits.

  • Positions: 4
  • Gender: Female
  • Termination: Wire lead
  • Threaded: Yes
  • Voltage Rating: 125V DC
  • Shielded: Unshielded
  • Housing Material: Brass
  • Rated: Dust tight, IP67, and waterproof
  • Current Rating: 1.5A
  • Operating Temperature Range: -10°C to 80°C
  • RoHS Compliant: Yes
  • Type: Circular connectors
