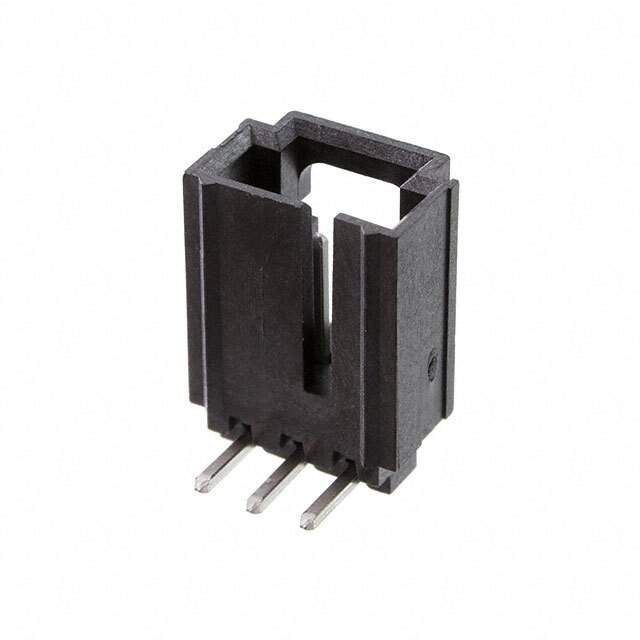

Same model may have multiple batches, images only for reference.

1719740003

Get a Quote

Part No	1719740003
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 3POS 2.54MM / Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	SL 171974
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.276" (7.00mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Polarizing Key
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	250V
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	General Purpose
Base Product Number	171974
Standard Package	53
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339134-1719740003
Ultra Librarian 3D Model	Ultra Librarian 1719740003 CAD Model

Alternative Products

Description

The Molex SL 171974 series is a male pin header meant for use in various electronic applications.

Number of Positions: 3
Features: Polarizing Key
Contact Type: Male Pin
All Positions Loaded: Yes
Mounting Type: Through Hole, Right Angle
Packaging: Tube
MSL Level: 1 (Unlimited)
HTSUS Code: 8536.69.4040
RoHS Status: RoHS3 Compliant
