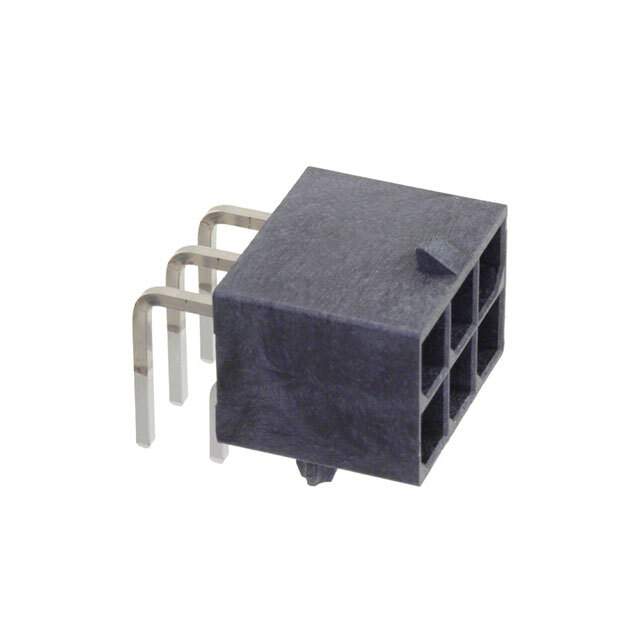

1720641006 Real Image
Same model may have multiple batches, images only for reference.

1720641006

Part No 1720641006
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 5.7MM / Connector Header Through Hole, Right Angle 6 position 0.224" (5.70mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.224" (5.70mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.224" (5.70mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.572" (14.53mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide, Glow Wire Compliant
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Industrial, Telecommunications
Base Product Number 172064
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM11211,172064-1006,1720641006-ND
Standard Package 850
Win Source Part Number 1332868-1720641006
Ultra Librarian 3D Model Ultra Librarian 1720641006 CAD Model

Description

The Molex 1332868-1720641006 is a rectangular male pin header connector with 6 positions and 2 rows.

  • Contact Material: Copper
  • Pitch: 0.224" (5.70mm)
  • Fastening: Locking Ramp
  • Feature: Board Guide
  • Contact Finish Mating: Gold with a thickness of 30.0µin
  • Contact Finish Post: Tin with a thickness of 100.0µin
  • Mounting: Through-Hole and Right-Angle
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Applications: Automotive, General-Purpose, Industrial, and Telecommunications
