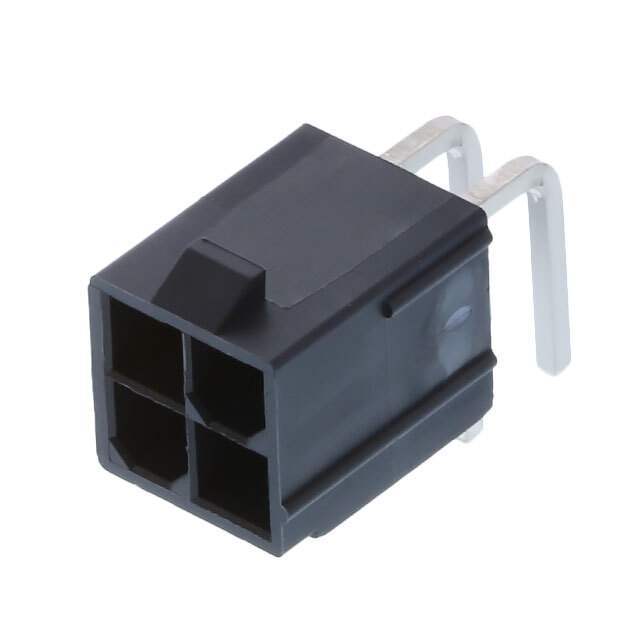

1724480004Molex
Same model may have multiple batches, images only for reference.

1724480004

Part No 1724480004
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 4.2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204310-1724480004
Manufacturer Molex
Category Connectors, Interconnects- Rectangular Connectors -Headers, Male Pins
Series Mini-Fit Jr 172448
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 4
Number of Rows 2
Ultra Librarian 3D Model Ultra Librarian 1724480004 CAD Model

Description

Connector Header Through Hole, Right Angle 4 position 0.165" (4.20mm)
