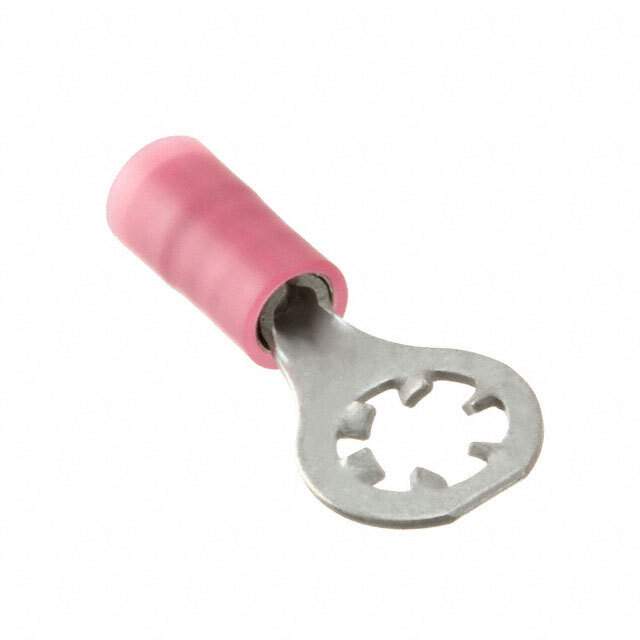

0190770011 Real Image
Same model may have multiple batches, images only for reference.

0190770011

Part No 0190770011
Manufacturer Molex, LLC
Catalog Terminals
Description CONN RING CIRC 18-22AWG #8 CRIMP / Ring Terminal Connector 8 Stud Circular 18-22 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer Molex
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.050" (1.27mm)
Width - Outer Edges 0.385" (9.78mm)
Length - Overall 0.930" (23.62mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Insulated
Features Inner Teeth, Serrated Termination
Color Red
Contact Material Steel
Contact Finish Electro-Tin
Insulation Diameter 0.138" (3.51mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 019077
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 19077-0011,SRA-S-829-08,019077-0011,190770011,WM13757,0190770011-ND
Standard Package 1,000
Win Source Part Number 1333771-0190770011
Ultra Librarian 3D Model Ultra Librarian 0190770011 CAD Model

Description

The Molex 1333771-0190770011 is a ring connector designed for use in a variety of applications.

  • Feature: Inner Teeth
  • Termination: Serrated
  • Contact Material: Steel
  • Contact Finish: Electro-Tin
  • Wire Gauge: 18-22 AWG
  • Stud/Tab Size: 8 Stud
  • Insulation Material: Polyamide (PA) and Nylon
  • Insulation: Insulated
  • Insulation Diameter: 0.138 inches
  • ROHS3 Compliant: Yes
  • Packaging: Bulk
  • Standard Package: 1,000
