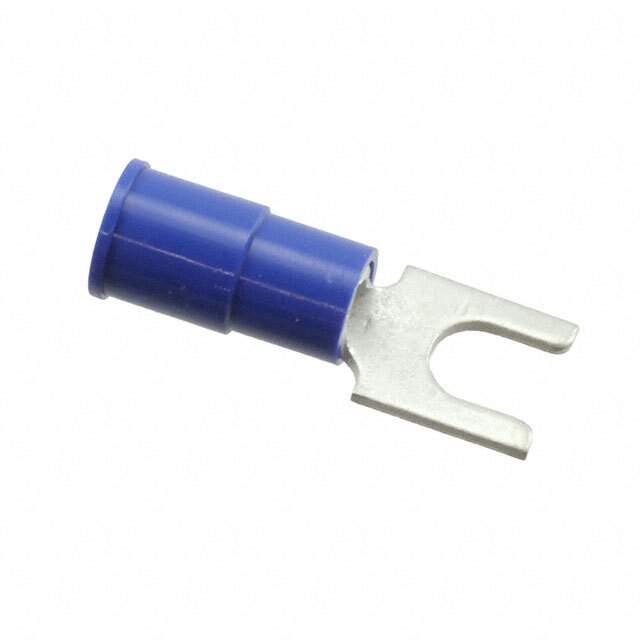

19130-0045 Real Image
Same model may have multiple batches, images only for reference.

19130-0045

Part No 19130-0045
Manufacturer Molex, LLC
Catalog Terminals
Description InsulKrimp Spade Tongue Terminal for 14 to 16 AWG Wire, Stud Size 8 (M4)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Copper
Body Plating Tin
Color Blue
Contact Material Copper
Contact Plating Tin
Country of Origin US
Depth 7.75 mm
Insulation Insulated
Insulation Diameter 4.445 mm
Insulation Material PVC
Length 20.8534 mm
Mount Free Hanging
Packaging Carton
RoHS Compliant
Termination Standard
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 14 AWG
Win Source Part Number 1143216-19130-0045
Categories Terminals
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 19130-0045 CAD Model

Description

This Molex, LLC copper terminal is a reliable and efficient component used in electronic circuits.

  • Insulation: PVC
  • Coating: Tin
  • Body Material: Copper
  • Body Plating: Tin
  • Insulation Diameter: 4.445 mm
  • Wire Gauge: 14 to 16 AWG
  • Length: 20.8534 mm
  • Depth: 7.75 mm
  • Mounting: Free Hanging
  • RoHS: Compliant
