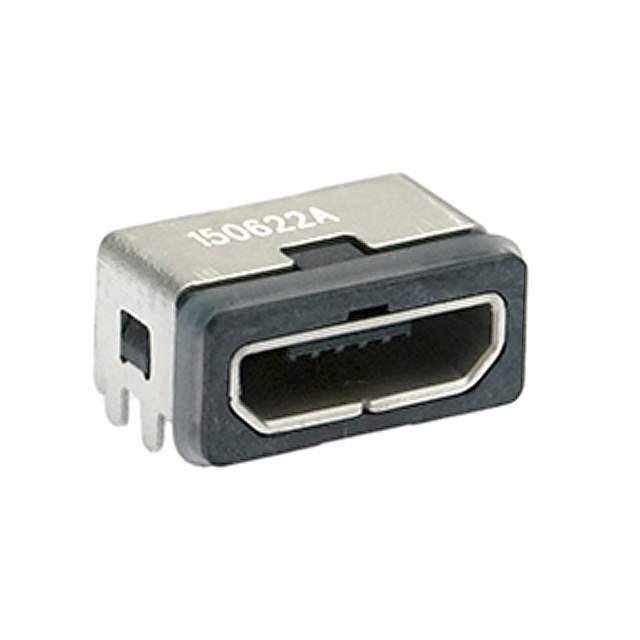

2049261103 Real Image
Same model may have multiple batches, images only for reference.

2049261103

Part No 2049261103
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MICRO B SMD R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Molex, LLC
Series 204926
Package Tape & Reel
Product Status Active
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Ingress Protection IP67 - Dust Tight, Waterproof
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A, 1.8A
Voltage - Rated 30VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 204926
Standard Package 700 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 845775-2049261103
Ultra Librarian 3D Model Ultra Librarian 2049261103 CAD Model

Description

The 845775-2049261103 is a USB micro B connector assembly from Molex, LLC. Bold the product name is 845775-2049261103 and the manufacturer is Molex, LLC.

  • Connector Type: USB micro B Connector Assembly
  • Series: 204926
  • Contact Finish: Gold
  • Shielded: Yes
  • Ingress Protection: IP67
  • Number of Contacts: 5
  • Mounting Type: Surface Mount, Right-Angle Through-Hole
  • Voltage Rating: 30VAC
  • Temperature Range: -30°C to 85°C
  • ECCN: EAR99
  • Product Status: Active
