Same model may have multiple batches, images only for reference.

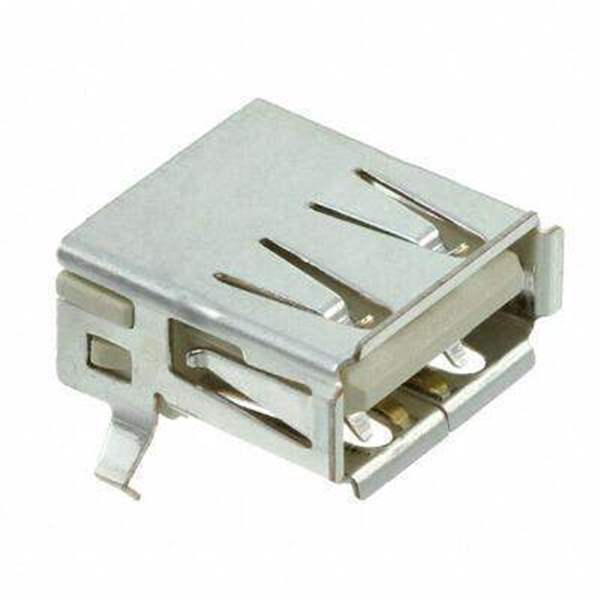

292303-7TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

292303-7

Part No 292303-7
Manufacturer TE Connectivity
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 TYPEA 4P SMD RA
Datasheet
292303-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Part Status Active
Connector Type USB-A (USB TYPE-A)
Mounting Type Surface Mount, Right Angle; Through Hole
Termination Solder
Features Board Lock
Operating Temperature -55°C ~ 85°C
Current Rating (Amps) 1A per Contact
Contact Finish Gold or Gold-Palladium
Shell/Shielding Material Steel, Stainless
Win Source Part Number WS1307062-292303-7
Ultra Librarian 3D Model Ultra Librarian 292303-7 CAD Model

Description

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Surface Mount, Right Angle; Through Hole
