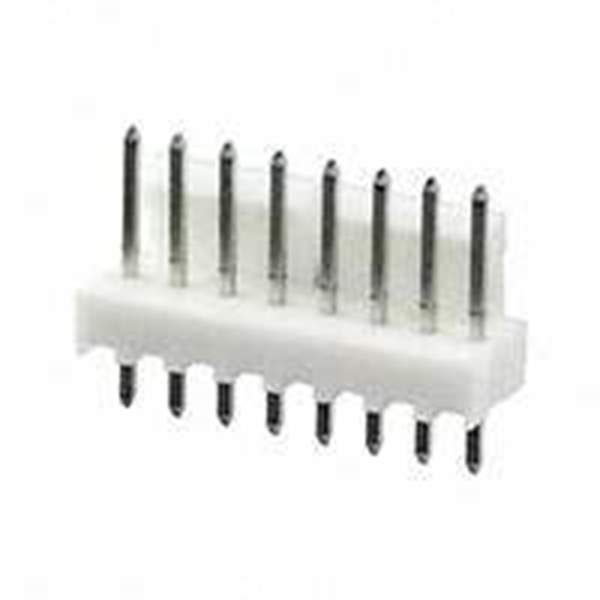

22-23-2081Molex
Same model may have multiple batches, images only for reference.

22-23-2081

Part No 22-23-2081
Manufacturer Molex, LLC
Catalog Rectangular Connector Contacts
Description CONN HEADER VERT 8POS 2.54MM
Datasheet
22-23-2081 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging  Bulk
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Shrouding Shrouded - 1 Wall
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.560" (14.22mm)
Ultra Librarian 3D Model Ultra Librarian 22-23-2081 CAD Model

Description

Connector Header Through Hole 8 position 0.100" (2.54mm)
