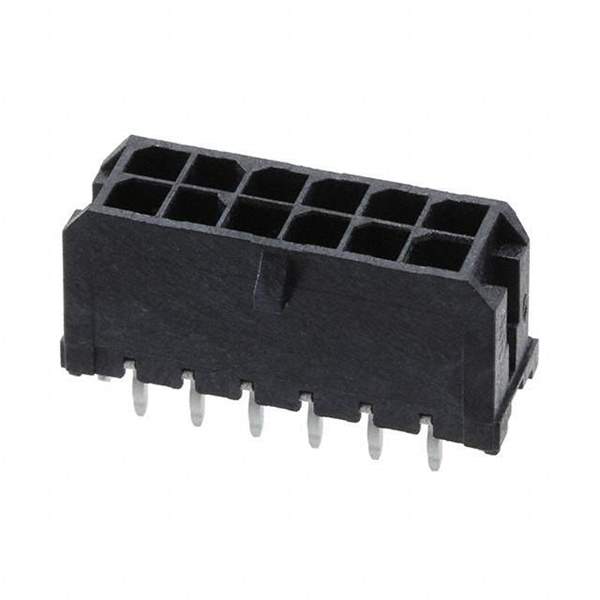

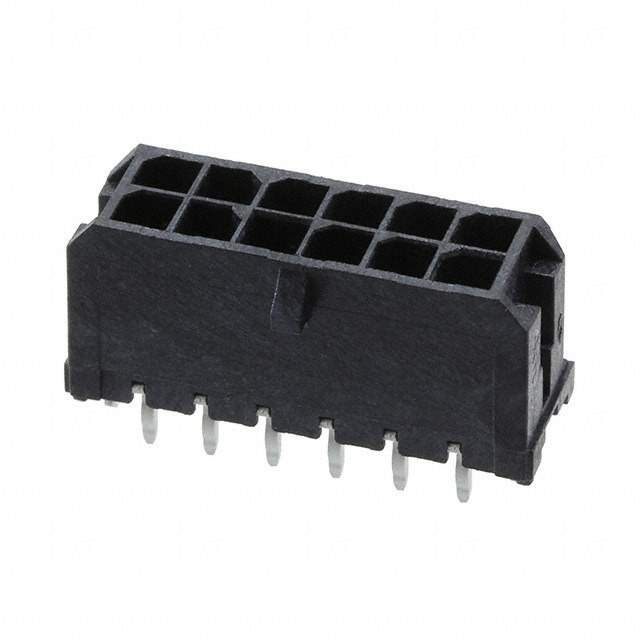

0430451226 Real Image
Same model may have multiple batches, images only for reference.

0430451226

Part No 0430451226
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 3MM / Connector Header Through Hole 12 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Guide, Board Lock
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 8A
Voltage Rating 600V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 043045
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 0430-45-1226,0430451226-ND,43045-1226,430451226,043045-1226,WM10711
Standard Package 1,008
Win Source Part Number 1332874-0430451226
Ultra Librarian 3D Model Ultra Librarian 0430451226 CAD Model

Description

The Molex 1332874-0430451226 is a 12-position male pin header connector with a locking ramp.

  • Voltage Rating: 600V
  • Contact Material: Brass
  • Mating Finish: Gold
  • Post Finish: Tin
  • Pitch: 0.118 inches
  • Applications: Board-to-Cable/Wire, General Purpose, Medical, Military, Telecommunications
  • Features: Board Guide, Board Lock
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass-Filled
  • Contact Shape: Square
  • Contact Length: 0.125 inches
  • Insulation Height: 0.390 inches
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -40°C to 105°C
  • Supplied In: Tray
  • Standard Package: 1,008
