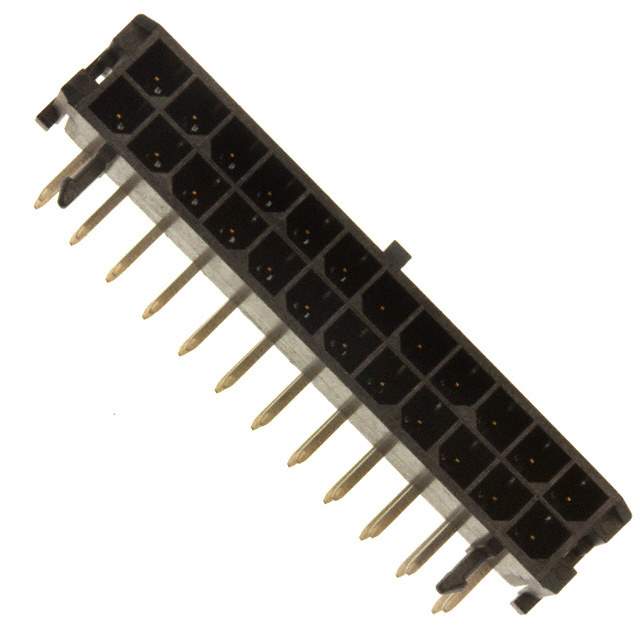

430452402 Real Image
Same model may have multiple batches, images only for reference.

430452402

Part No 430452402
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 24POS 3MM R/A GOLD
Datasheet
430452402 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 24
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose, Medical, Military, Telecommunications
Win Source Part Number 1005518-430452402
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 430452402 CAD Model

Description

The 1005518-430452402 is a header connector from Molex, LLC.

  • Product: Header Connector
  • Manufacturer: Molex, LLC
  • Supply and Demand Status: Sufficient
  • Features: Board Lock, Shrouded-4 Wall
  • Mounting: Through-Hole, Right-Angle
