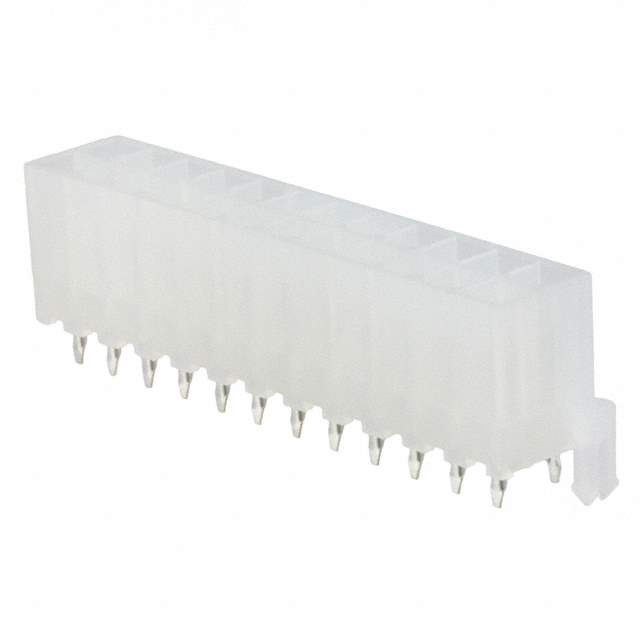

44206-0007 Real Image
Same model may have multiple batches, images only for reference.

44206-0007

Part No 44206-0007
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Mini-Fit Jr™ Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Contact Gender Male
Contact Material Brass
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin US
Current Rating 6 A
Depth 7.6 mm
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 4.65 mm
Housing Color Natural
Housing Material Nylon
Length 6 mm
Max Operating Temperature 105 °C
Max Voltage Rating (AC) 600 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 24
Number of Contacts 24
Number of Pins 24
Number of Ports 1
Number of Positions 24
Number of Rows 2
Number of Terminals 24
Orientation Vertical
Pitch 4.2 mm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Row Spacing 4.2 mm
Termination Solder
Voltage Rating 600 V
Win Source Part Number 1202827-44206-0007
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 44206-0007 CAD Model

Description

Molex, LLC's 44206-0007 is a 24-position receptacle connector.

  • Pitch: 4.2 mm
  • Color: Natural
  • Rows: 2
  • Row Spacing: 4.2 mm
  • Termination: Solder
  • Contact Material: Brass
  • Voltage Rating: 600 V
  • Current Rating: 6 A
  • Gender: Receptacle
  • Housing Material: Nylon
  • Orientation: Vertical
  • Contact Plating: Tin
  • Housing Color: Natural
  • Contact Resistance: 20 mΩ
  • Height: 4.65 mm
  • Number of Pins: 24
  • Package/Case: Through Hole
  • HTSUS Code: 8536.69.4040
  • RoHS Compliant: Yes
  • Low Halogen Content: Yes
