Same model may have multiple batches, images only for reference.

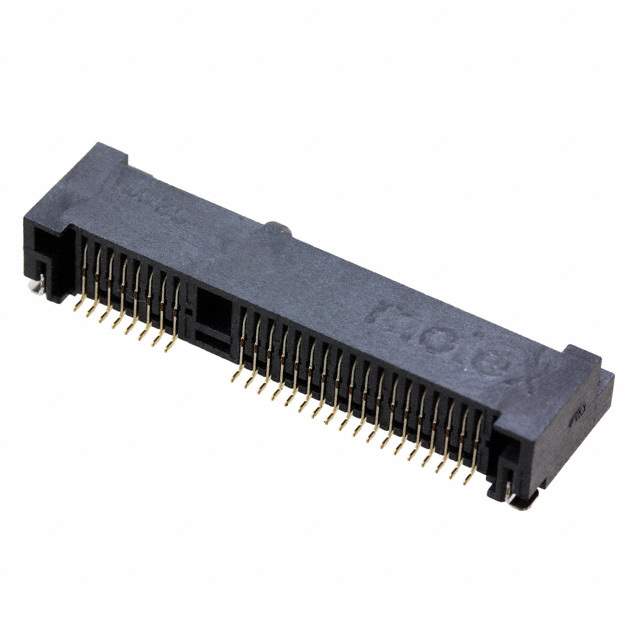

48338-0040 Real Image
Same model may have multiple batches, images only for reference.

48338-0040

Part No 48338-0040
Manufacturer Molex, LLC
Catalog Card Edge Connectors - Edgeboard Connectors
Description Conn Card Edge SKT 52 POS 0.8mm Solder RA SMD Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Gold
Country of Origin CN
Current Rating 1 A
Glow Wire Compliant Non-compliant
Housing Material Thermoplastic
Number of Circuits 13
Number of Positions 52
Number of Rows 1
Orientation Right Angle
RoHS Compliant
Win Source Part Number 1187123-48338-0040
Categories Card Edge Connectors - Edgeboard Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 48338-0040 CAD Model

Description

The Molex, LLC 1187123-48338-0040 is a card edge connector that has 52 positions and 1 row.

  • Positions: 52
  • Rows: 1
  • Current Rating: 1 A
  • Material: Thermoplastic
  • Circuits: 13
  • Orientation: Right-Angle
  • Contact Plating: Gold
  • Category: Card Edge Connectors - Edgeboard Connectors
  • Alternative Part Number: 0483380040, 483-38-0040
  • Supply and Demand Status: Limited
  • RoHS Compliant: Yes
  • MSL Level: 1 (Unlimited)
