48338-0065

Part No 48338-0065
Manufacturer Molex, LLC
Catalog Card Edge Connectors - Edgeboard Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Uncategorized
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 815634-48338-0065
Ultra Librarian 3D Model Ultra Librarian 48338-0065 CAD Model

Description

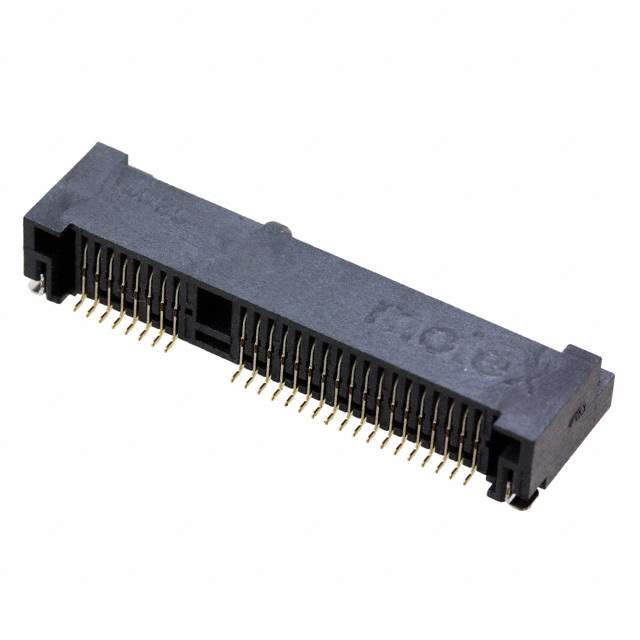

The 48338-0065 is an edge card connector manufactured by Molex, LLC. This connector is designed to provide a reliable and secure connection between a printed circuit board (PCB) edge and another component or system. It is part of Molex's extensive range of card edge connectors, known for their durability and performance in various applications.

Applications:

  • Telecommunications Equipment
  • Data Communication Systems
  • Industrial Control Systems
  • Consumer Electronics
  • Computer Peripherals
  • Memory Cards
  • Expansion Cards

Features:

  • Edge Card Connector: Designed for direct connection to the edge of a PCB.
  • Durable Construction: Manufactured with high-quality materials for long-lasting performance.
  • Secure Connection: Provides a stable and reliable electrical connection.
  • Compact Design: Space-saving design for high-density applications.
  • Multiple Contact Options: Available with various contact materials and platings to suit different requirements.
  • Polarization Features: Ensures correct insertion and prevents damage.

Benefits:

  • Reliable Performance: Ensures consistent and dependable electrical connections.
  • Long Lifespan: Durable construction provides extended service life.
  • Space Efficiency: Compact design allows for efficient use of board space.
  • Easy Installation: Simple and straightforward installation process.
  • Versatile Application: Suitable for a wide range of applications and industries.
  • Reduced Downtime: Reliable connection minimizes the risk of signal interruption.

Additional Details:

The Molex 48338-0065 edge card connector features a specific number of contacts and a particular contact plating material, typically gold or tin, to ensure optimal conductivity and resistance to corrosion. It is designed to accommodate a specific PCB thickness and has defined mechanical dimensions for proper fit and alignment.

The connector's housing is typically made of a high-temperature thermoplastic material, providing excellent insulation and mechanical strength. It also often includes polarization features to prevent incorrect insertion and potential damage. Electrical characteristics include a specified current rating, voltage rating, and contact resistance. The connector is designed to meet industry standards for performance and reliability.
