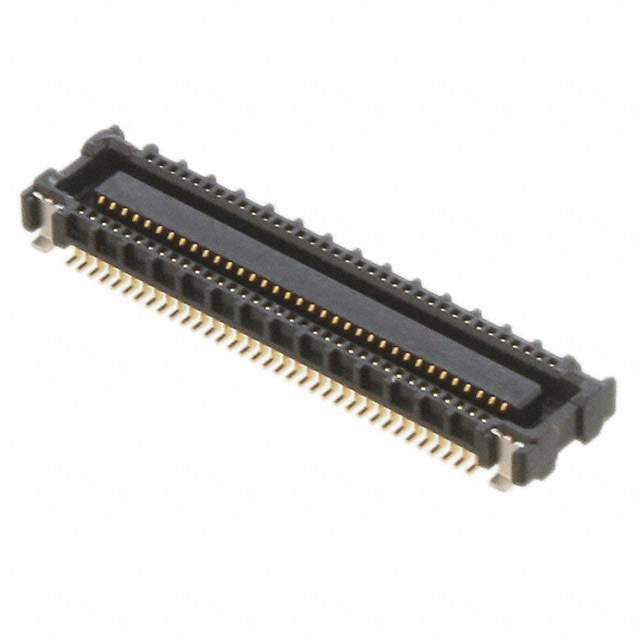

5009130702

Name: 5009130702
Brand: Molex, LLC
SKU: 546234
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	5009130702
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	0.40mm (.016") Pitch SlimStack Board-to-Board PCB Receptacle, Surface Mount, Dual Row \| CONN RCPT 70POS SMD GOLD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Reel
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	70
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Style	SMD
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	8.00μin (0.203μm)
Mated Stacking Heights	1.8mm
Height Above Board	0.063" (1.60mm)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1128922-5009130702
Manufacturer Homepage	www.molex.com
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian 5009130702 CAD Model

Alternative Products

Description

The Molex 1128922-5009130702 is a 70-position receptacle connector with center strip contacts.

Number of Positions: 70
Pitch: 0.016" (0.40mm)
Contact Finish: Gold
Contact Finish Thickness: 8.00μin (0.203μm)
Height Above Board: 0.063" (1.60mm)
Mounting Type: Surface Mount
Features: Solder Retention
Mated Stacking Heights: 1
Supply and Demand Status: Sufficient
