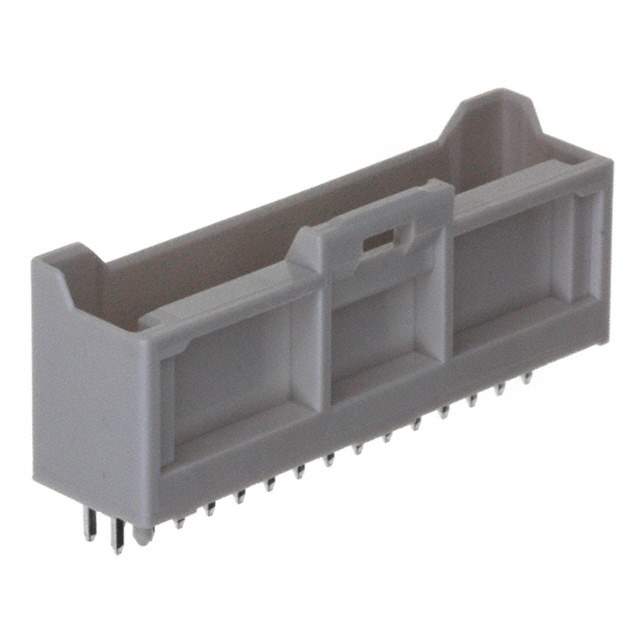

5016453020 Real Image
Same model may have multiple batches, images only for reference.

5016453020

Part No 5016453020
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 30POS 2MM / 2.00mm (.079") Pitch iGrid Wire-to-Board Header, Dual Row, Vertical, with PCB Locator
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.472" (12.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Natural
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811646-5016453020
Ultra Librarian 3D Model Ultra Librarian 5016453020 CAD Model

Description

The Molex electronic component is a tray-packaged device with an unspecified name.

  • Manufacturer: Molex
  • Win Source Part Number: 811646-5016453020
  • Positions: 30
  • Mounting Type: Through Hole
  • Board Guide: Yes
  • Connector Type: Header with Male Pins
  • Positions Loaded: All
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Shrouding: 4 Walls
  • Mating Pitch: 0.079" (2.00mm)
  • Contact Finish (Mating): Tin
  • Contact Finish (Post): Tin
  • Insulation Color: Natural
  • Row Spacing (Mating): 0.079" (2.00mm)
  • Contact Length (Post): 0.126" (3.20mm)
  • Insulation Height: 0.472" (12.00mm)
  • Contact Shape: Square
  • Applications: Automotive, General Purpose, Industrial, Medical, Telecommunications
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Current Rating: Unspecified
