Same model may have multiple batches, images only for reference.

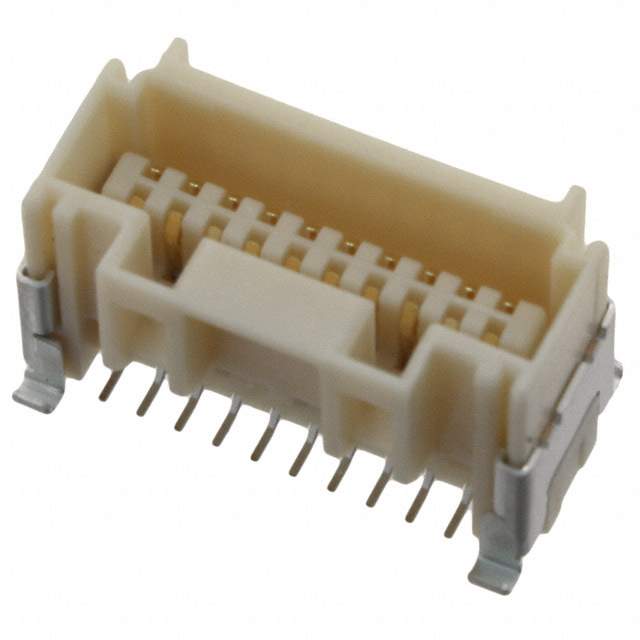

501931-2070 Real Image
Same model may have multiple batches, images only for reference.

501931-2070

Part No 501931-2070
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Wire to Board RCP 20 POS 1.25mm Solder ST Top Entry SMD Duo-Clasp™ T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Receptacle, Socket
Contact Gender Female
Contact Plating Gold
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 1 A
Depth 8.85 mm
Gender Receptacle
Glow Wire Compliant Non-compliant
Housing Color Natural
Housing Material Polyamide
Length 16.55 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 50 V
Max Voltage Rating (DC) 5.05 kV
Min Operating Temperature -25 °C
Mount Surface Mount
Number of Circuits 20
Number of Contacts 20
Number of Positions 20
Number of Rows 2
Orientation Vertical
Packaging Tape & Reel
Pitch 1.25 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating (AC) 50 V
Win Source Part Number 1022785-501931-2070
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 501931-2070 CAD Model

Description

The Molex, LLC electronic component with Win Source Part Number 1022785-501931-2070 is a circular connector housing with 20 positions and a pitch of 1.25mm.

  • Positions: 20
  • Pitch: 1.25mm
  • Connector Type: Receptacle Socket
  • Rows: Two
  • Mounting Type: Surface Mount
  • Current Rating: 1A
  • Housing Material: Polyamide
  • Contact Plating: Gold
  • Housing Color: Natural
  • Contact Resistance: 20mΩ
  • RoHS Compliant: Yes
  • Popularity: Low
  • Supply and Demand Status: Shortage
