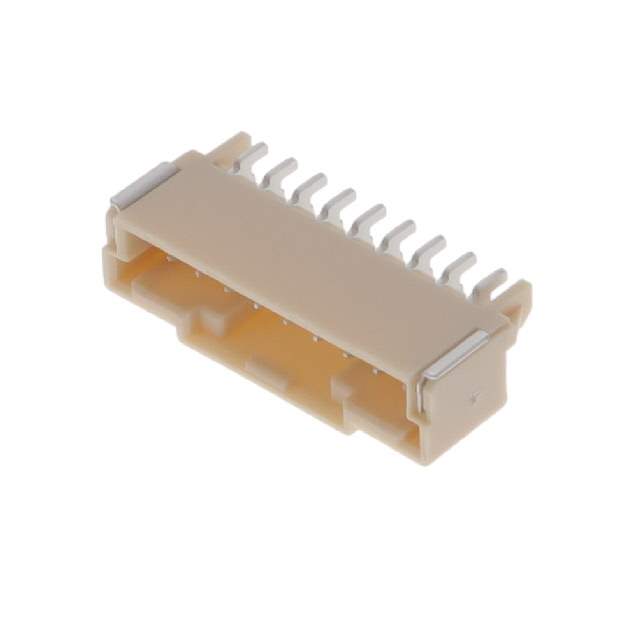

5023520900

Name: 5023520900
Brand: Molex, LLC
SKU: 1332890
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5023520900
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 9POS 2MM / Connector Header Surface Mount, Right Angle 9 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Reel - TR
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	9
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Insulation Height	0.252" (6.40mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Applications	Automotive, Industrial
Base Product Number	502352
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	WM17782DKR,502352-0900,5023520900-ND,WM17782TR,WM17782CT
Standard Package	700
Win Source Part Number	1332890-5023520900
Ultra Librarian 3D Model	Ultra Librarian 5023520900 CAD Model

Alternative Products

Description

The 1332890-5023520900 is a male pin header connector manufactured by Molex.

Type: Rectangular Connector
Positions: 9
Features: Solder Retention
Applications: Automotive and Industrial
Connector Type: Header
Contact Type: Male Pin
Shrouding: Shrouded with 4 Walls
Pitch Mating: 0.079" (2.00mm)
Contact Finish-Mating: Tin
Insulation Material: Polyamide (PA), Nylon
