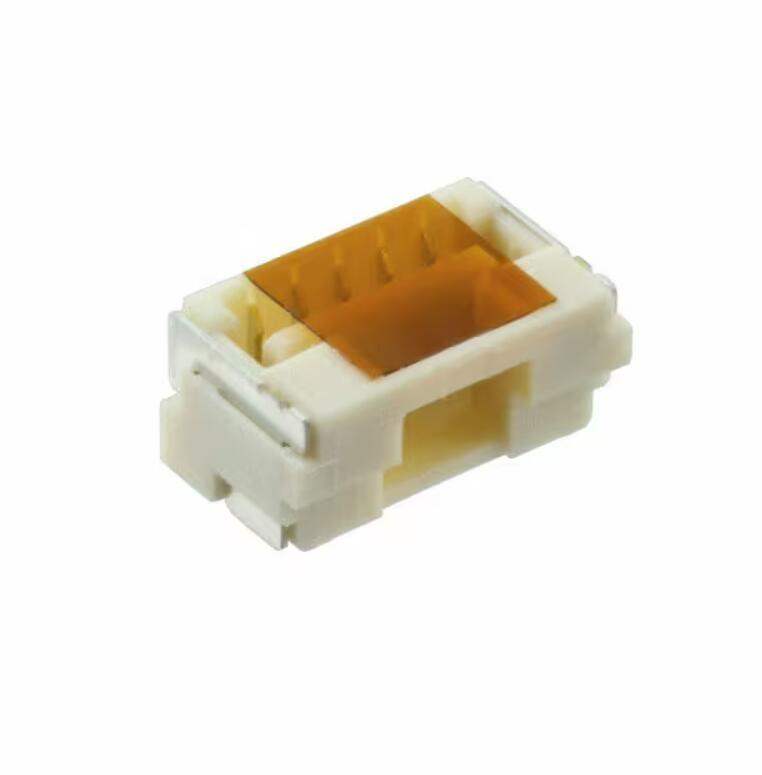

5023820572Molex
Same model may have multiple batches, images only for reference.

5023820572

Part No 5023820572
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 5POS 0.049 TIN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1168982-5023820572
Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Series CLIK-Mate 502382
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Cable/Wire
Pitch - Mating 0.049" (1.25mm)
Ultra Librarian 3D Model Ultra Librarian 5023820572 CAD Model

Description

The CLIK-Mate 502382 is a rectangular connector receptacle with female sockets manufactured by Molex. CLIK-Mate 502382 is manufactured by Molex.

  • Connector Type: Receptacle
  • Contact Gender: Female
  • Connection Type: Board to Cable/Wire
  • Pitch - Mating: 0.049" (1.25mm)
  • Packaging: Tape & Reel, Cut Tape, Digi-Reel
  • Product Status: Active
  • Contact Type: Forked
