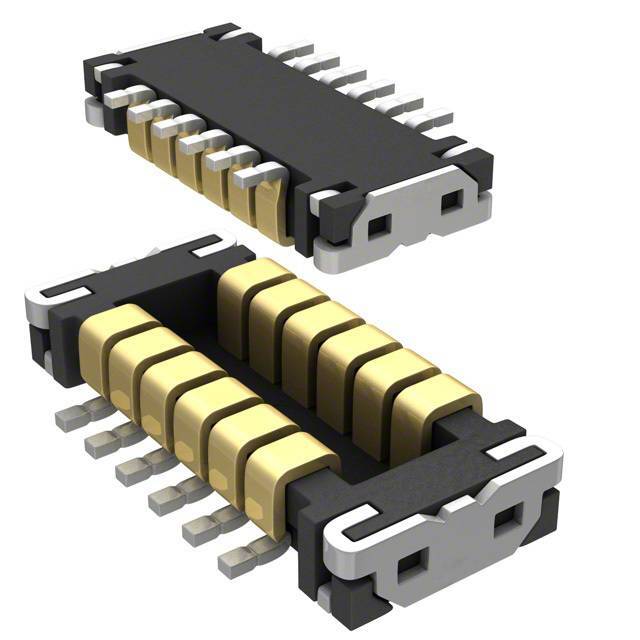

5035521222 Molex, LLC – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5035521222

Part No 5035521222
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Description CONN PLUG 12POS SMD GOLD
Datasheet
5035521222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 12
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Pick and Place, Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.7mm
Height Above Board 0.023\
Ultra Librarian 3D Model Ultra Librarian 5035521222 CAD Model
