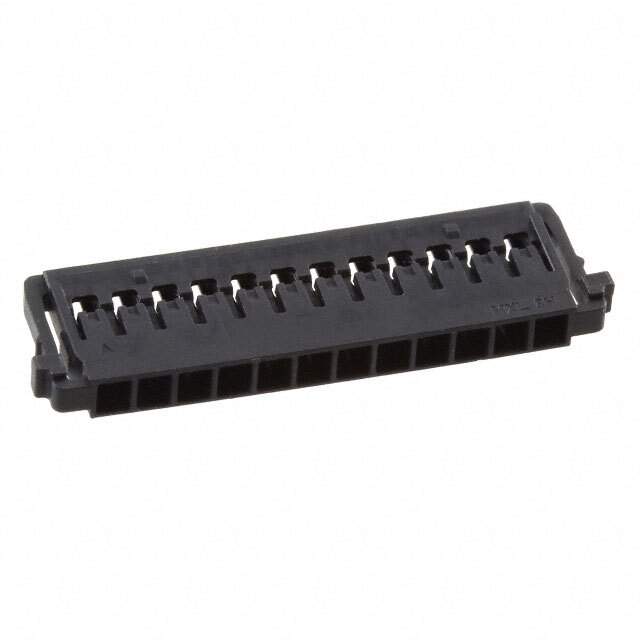

504051-1201 Real Image
Same model may have multiple batches, images only for reference.

504051-1201

Part No 504051-1201
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description 1.50mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 12 Circuits, Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle, Socket
Country of Origin MY
Fastening Type Detent
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Black
Housing Material Thermoplastic
Length 21.95 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Cable, Free Hanging
Number of Pins 12
Number of Positions 12
Number of Rows 1
Orientation Straight
Pitch 1.4986 mm
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536695050
Termination Crimp
Win Source Part Number 958438-504051-1201
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 504051-1201 CAD Model

Description

This Molex LLC connector is a receptacle socket with 12 positions and 1 row.

  • Product Name: Receptacle Socket Connector
  • Manufacturer: Molex LLC
  • Positions: 12
  • Rows: 1
  • Pitch: 1.4986 mm
  • Termination: Crimp
  • Fastening Type: Detent
  • Orientation: Straight
  • Housing Material: Thermoplastic
  • Housing Color: Black
  • Mount: Cable or free hanging
  • RoHS: Compliant
  • Maximum Operating Temperature: 85 °C
  • Minimum Operating Temperature: -25 °C
  • Halogen: Low halogen
  • Supply and demand status: Shortage
  • Length: 21.95 mm
  • Pins: 12
  • Alternate Parts: 1-1775441-2, 1-353908-2, 1-353908-0, 51021-1200, 87439-1200, and 502380-12005040511201
