Same model may have multiple batches, images only for reference.

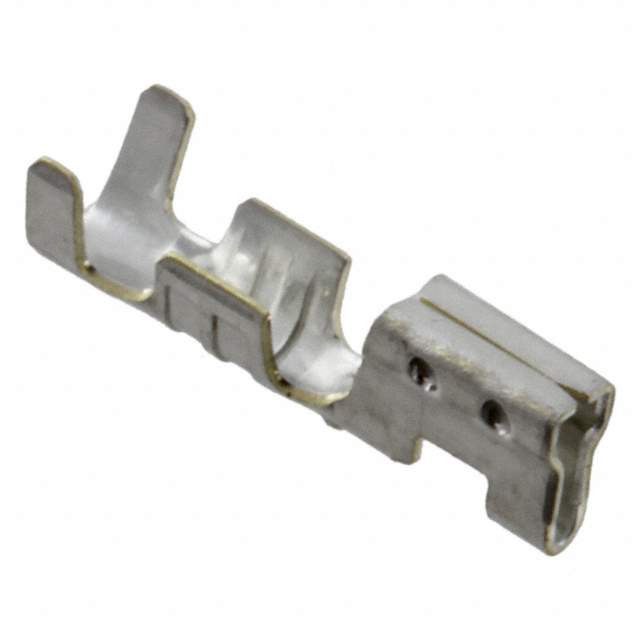

50802-9001 Real Image
Same model may have multiple batches, images only for reference.

50802-9001

Part No 50802-9001
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description 2.50mm Pitch Mini-Latch Crimp Terminal, Female, Brass, Reel
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector, Crimp, PCB, Signal
Contact Gender Female
Contact Material Brass
Contact Plating Tin
Country of Origin JP
Current Rating 3 A
Depth 2.4 mm
Gender Female
Halogen Free Low Halogen
Height 2.2 mm
Lead Free Lead Free
Length 8.4 mm
Mount Cable
Orientation Straight
Packaging Cut Tape
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination Crimp
Voltage Rating 250 V
Weight 55.990308 mg
Wire/Cable Diameter 640 µm
Wire/Cable Gauge 28 AWG
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 28 AWG
Win Source Part Number 1149241-50802-9001
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 50802-9001 CAD Model

Description

The Molex PCB signal connector is a component used to connect wires to a printed circuit board.

  • Termination: crimp
  • Contact Gender: female
  • Warranty: manufacturer warranty
