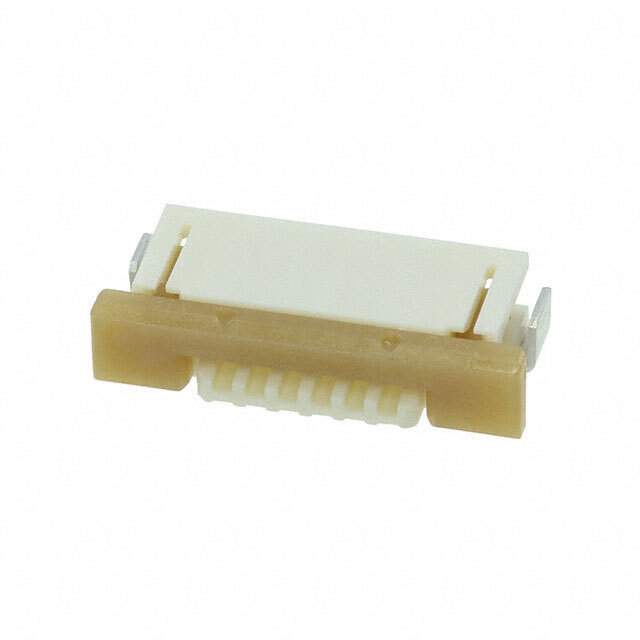

52271-0669

Part No 52271-0669
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 1.00mm Pitch FFC/FPC Right Angle, SMT, 6 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Gold
Contact Resistance 20 mΩ
Country of Origin SG
Current Rating 500 mA
Depth 6.7 mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Receptacle
Housing Color Natural
Housing Material Nylon
Length 13 mm
Material Bronze
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 50 V
Max Voltage Rating (DC) 5.05 kV
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 6
Number of Contacts 6
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel (TR)
Pitch 1 mm
Plating Tin
REACH SVHC No SVHC
RoHS Compliant
Stackable No
Termination Solder
Voltage Rating 50 V
Wire/Cable Type Flat Flex
Win Source Part Number 1200752-52271-0669
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 52271-0669 CAD Model

Description

This 6-contact FFC/FPC connector from Molex, LLC is a right-angle receptacle with a 1mm pitch and a contact material of bronze.

  • Contacts: 6
  • Type: FFC/FPC connector
  • Configuration: Right-angle receptacle
  • Pitch: 1mm
  • Contact Material: Bronze
  • Voltage Rating: 50V
  • Current Rating: 500mA
  • Contact Resistance: 20 mΩ
  • Housing Material: Nylon
  • Contact Plating: Gold
  • Cable Type: Flat flex
  • RoHS Compliant: Yes
  • ELV Compliant: Yes
  • Operating Temperature (Max): 85 °C
  • Operating Temperature (Min): -20 °C
  • Mounting: Surface mountable
  • Depth: 6.7mm
  • Packaging: Tape & reel (TR)
  • Stackable: Yes
