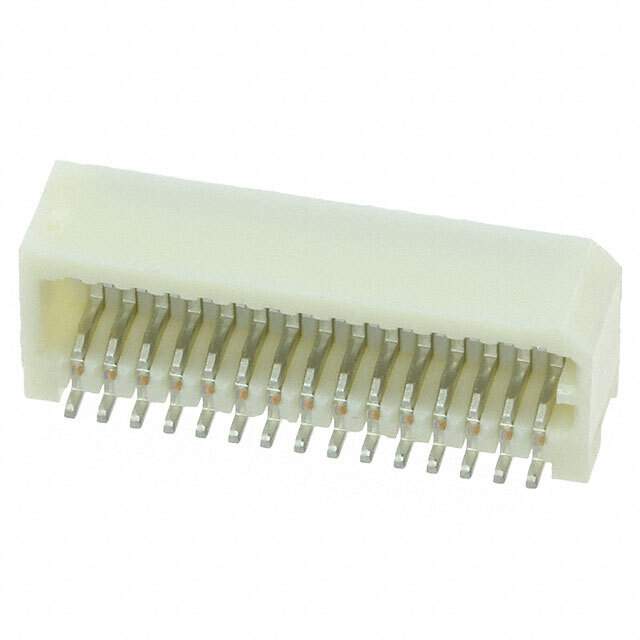

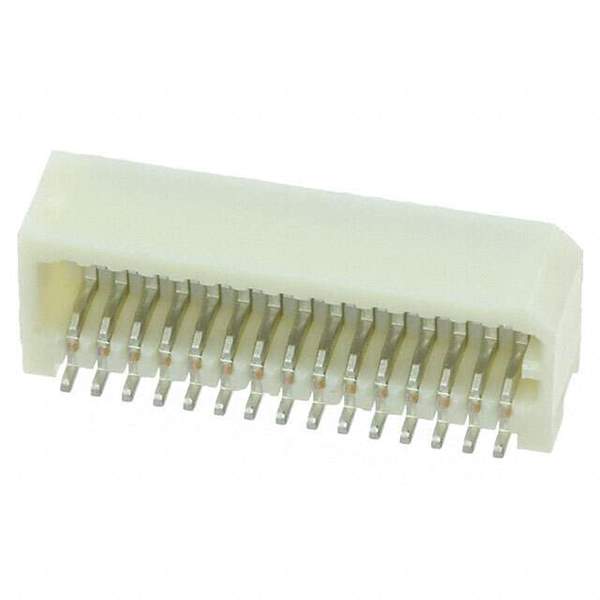

53309-3070 Real Image
Same model may have multiple batches, images only for reference.

53309-3070

Part No 53309-3070
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description MOLEX; Mini-Reel of 53309-3070; 0.8 BtB WaferAssy RA SMT 30Ckt EmbsTpPkg
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Tin
Country of Origin JP
Current Rating 500 mA
Gender Male
Glow Wire Compliant Non-compliant
Housing Material Thermoplastic
Number of Circuits 30
Number of Contacts 30
Number of Positions 30
Number of Rows 2
Orientation Right Angle
Pitch 800 µm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination SMD/SMT
Voltage Rating 50 V
Win Source Part Number 1022613-53309-3070
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 53309-3070 CAD Model

Description

The Molex 1022613-53309-3070 is a 30-position male connector designed for use in a variety of applications.

  • Pitch: 800μm
  • Current Rating: 500mA
  • Voltage Rating: 50V
  • Contact Material: bronze
  • Contact Plating: tin
  • Alternative Part Cross-Reference: 53309-2870, 53309-2670, 0533092270, DF9-25P-1V(32), DF9B-31P-1V(32), DF9-31P-1V(69)0533093070, 53309-3070-TR250, 533093070, and 533093070TR250
  • RoHS Compliant: yes
  • REACH SVHC: unaffected
  • ECCN: EAR99
