Same model may have multiple batches, images only for reference.

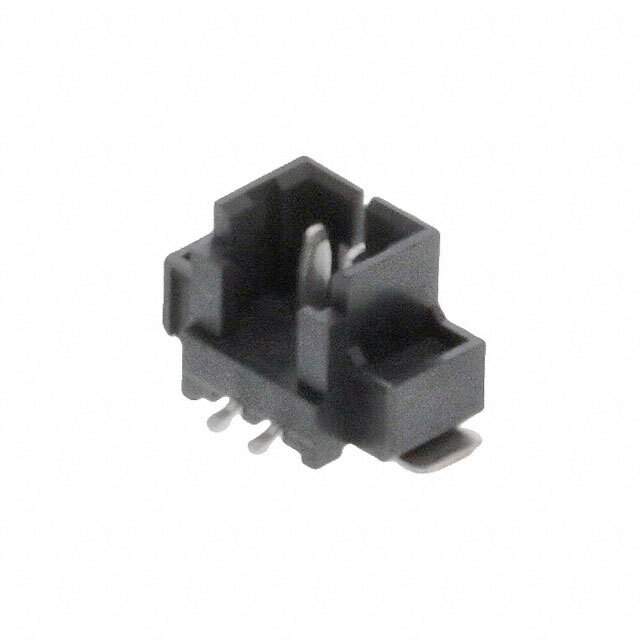

53398-0276 Real Image
Same model may have multiple batches, images only for reference.

53398-0276

Part No 53398-0276
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 1.25mm Pitch PicoBlade Header Surface Mount Vertical 2 Circuits Tin-Copper Contact Plating
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Tin
Country of Origin MY
Current Rating 1 A
Depth 16 mm
Gender Male
Housing Color Black
Housing Material Thermoplastic
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Number of Circuits 2
Number of Positions 2
Number of Rows 1
Orientation Vertical
Packaging Tape and Reel
Pitch 1.25 mm
Plating Tin
RoHS Compliant
Termination SMD/SMT
Voltage Rating 125 V
Win Source Part Number 1177834-53398-0276
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 53398-0276 CAD Model

Description

This Molex, LLC circular connector housing is a thermoplastic male housing with a black color.

  • Pitch: 1.25 mm
  • Number of Positions: 2
  • Termination: SMD/SMT
  • Contact Material: Bronze
  • Voltage Rating: 125 V
  • Current Rating: 1 A
  • Contact Plating: Tin
  • Housing Color: Black
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40 °C
  • Maximum Operating Temperature: 85 °C
  • Depth: 16 mm
  • Supply and Demand Status: Limited
