Same model may have multiple batches, images only for reference.

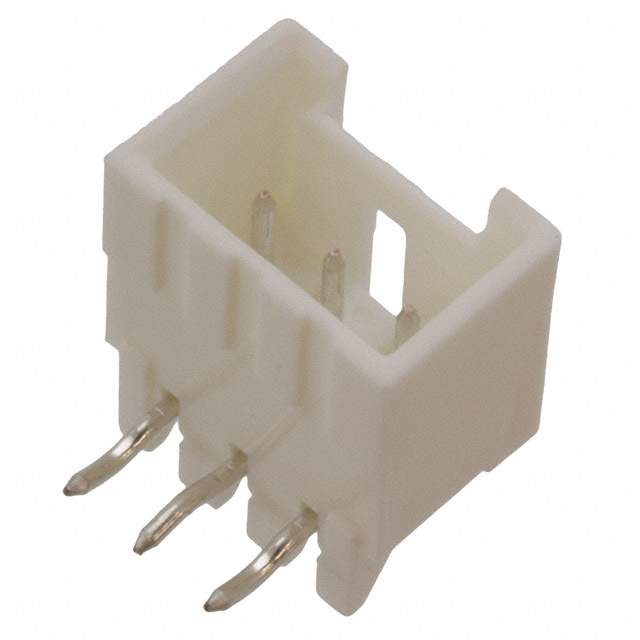

53426-0310 Real Image
Same model may have multiple batches, images only for reference.

53426-0310

Part No 53426-0310
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Side Entry Thru-Hole Carton
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Contact Material Bronze, Copper, Tin
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 3 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Height 6.9 mm
Housing Material Polyester
Insulation Resistance 1 GΩ
Lead Free Yes
Lead Pitch 2.5 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 3
Number of Contacts 3
Number of Positions 3
Number of Rows 1
Orientation Right Angle
Pitch 2.5 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Through Hole
Voltage Rating 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 986651-53426-0310
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 53426-0310 CAD Model

Description

This Molex 986651-53426-0310 circular connector housing is a through-hole, right angle component with 3 contacts.

  • Pitch: 2.5 mm
  • Voltage Rating: 250 V
  • Maximum Current Rating: 3 A
  • Contact Material: bronze, copper, and tin
  • Contact Resistance: 20 mΩ
  • Housing Material: polyester
  • Height: 6.9 mm
  • Flammability Rating: UL94 V-0
  • RoHS Compliant: yes
  • Lead-Free: yes
