Same model may have multiple batches, images only for reference.

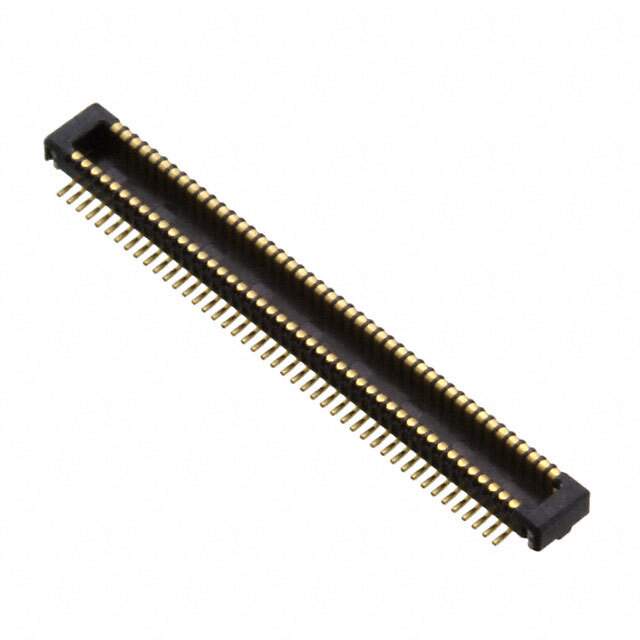

559090974 Real Image
Same model may have multiple batches, images only for reference.

559090974

Part No 559090974
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 0.40mm Pitch Board-to-Board SlimStack Plug Surface Mount Dual Row Vertical Stacking 90 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Brass, Bronze
Contact Plating Gold
Country of Origin KR
Current Rating 300 mA
ELV Compliant
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Material Thermoplastic
Material Brass
Mount Surface Mount
Number of Circuits 90
Number of Positions 90
Number of Rows 2
Orientation Vertical
Pitch 400 µm
Plating Gold
REACH SVHC Unknown
RoHS Compliant
Termination SMD/SMT
Voltage Rating 50 V
Win Source Part Number 1122682-559090974
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 559090974 CAD Model

Description

This Molex circular connector housing can accommodate up to 90 circuits and features a vertical orientation.

  • Circuits: Up to 90
  • Orientation: Vertical
  • Material: Thermoplastic
  • Voltage Rating: 50 V
  • Current Rating: 300 mA
  • Contact Material: Brass and Bronze
  • Contact Plating: Gold
  • RoHS Compliant: Yes
  • Mounting: Surface Mountable
  • Pitch: 400 µm
  • Halogen: Low Halogen
  • Supply and Demand Status: Limited
