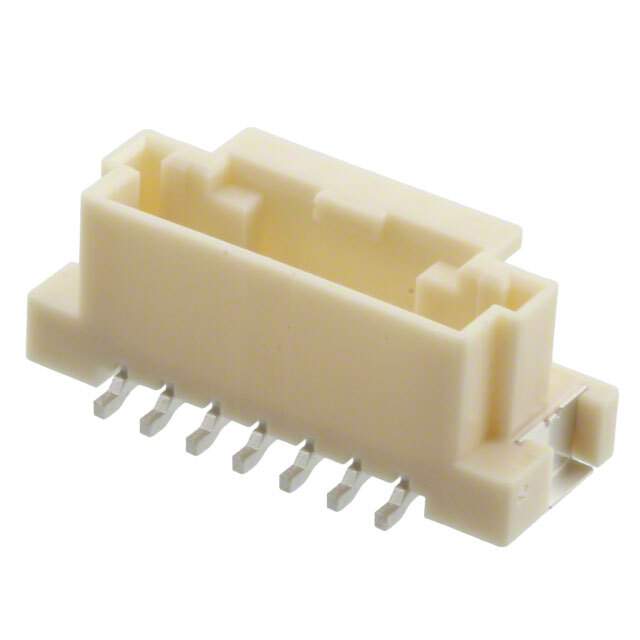

5600200720 Real Image
Same model may have multiple batches, images only for reference.

5600200720

Part No 5600200720
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 7POS 2MM
Datasheet
5600200720 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 26 Weeks
Features Connector Header Surface Mount 7 position 0.079" (2.00mm)
Manufacturer Molex, LLC
Series DuraClik 560020
Package Reel - TR
Mounting Surface Mount
Family Name 560020
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM10867CT, 05600200720, 560020-0720, WM10867TR, WM10867DKR, 5600200720-ND
Quantity per package 650
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907474-5600200720
Ultra Librarian 3D Model Ultra Librarian 5600200720 CAD Model

Description

The Molex DuraClik 560020 series connector header is a surface mount component with 7 positions and a pitch of 0.079 inches (2.00mm).

  • Packaging: reel
  • Quantity per package: 650
  • Supply and demand: balanced
  • Estimated production lead time: 26 weeks
  • REACH: unaffected
