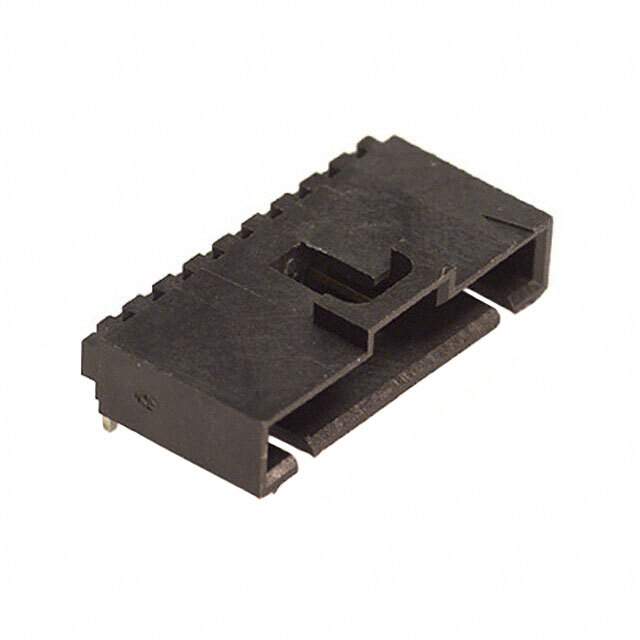

70553-0008 Real Image
Same model may have multiple batches, images only for reference.

70553-0008

Part No 70553-0008
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 9 POS 2.54mm Solder RA Side Entry Thru-Hole SL™ Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Material Bronze
Contact Plating Gold
Contact Resistance 30 mΩ
Country of Origin US
Current Rating 3 A
Depth 13.59 mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Height 6.99 mm
Housing Color Black
Housing Material Thermoplastic
Insulation Resistance 1 GΩ
Lead Free Contains Lead
Lead Pitch 2.54 mm
Length 25.41 mm
Material Brass
Max Current Rating 3 A
Maximum Operating Temperature 105 °C
Max Voltage Rating (AC) 250 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 9
Number of Contacts 9
Number of Positions 9
Number of Rows 1
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1006627-70553-0008
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 70553-0008 CAD Model

Description

The 1006627-70553-0008 is a 9-position circular connector housing with a pitch of 2.54mm.

  • Positions: 9
  • Pitch: 2.54mm
  • Termination: solder
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Contact Resistance: 30 mΩ
  • Housing Material: thermoplastic
  • Contact Material: bronze
  • Package: not specified
  • Categories: circular connectors - housings
  • Insulation Resistance: 1 GΩ
  • Alternative Parts (Cross-Reference): 78208-109HLF, 70553-0043, 22-28-8094, 68000-109HLF, 76384-309LF, 00222850940705530008, 70553-0008, 705530008
  • Country of Origin: US
  • Popularity: low
  • Maximum Operating Temperature: 105 °C
  • Depth: 13.59 mm
  • Lead: not free
  • Mount: through hole
  • RoHS: compliant
  • Flammability Rating: UL94 V-0
  • Manufacturer: Molex, LLC
