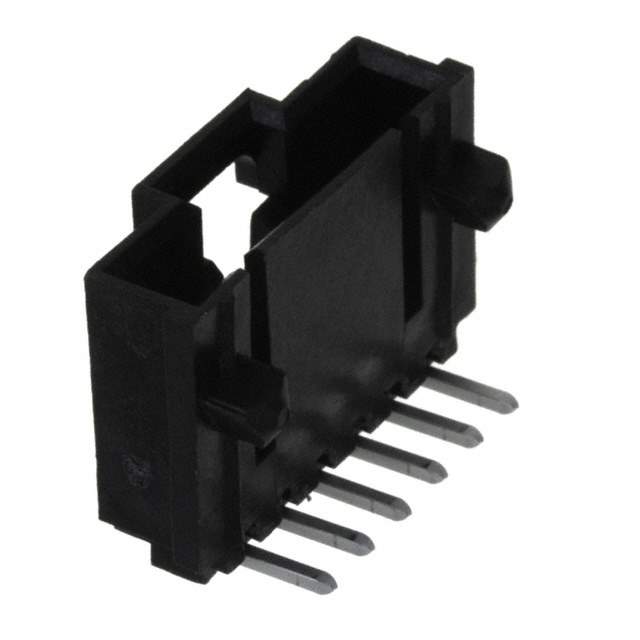

70555-0040 Real Image
Same model may have multiple batches, images only for reference.

70555-0040

Part No 70555-0040
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Automotive Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Gender Male
Contact Material Bronze
Contact Plating Gold
Contact Resistance 30 mΩ
Country of Origin US
Current Rating 3 A
ELV Compliant
Flammability Rating UL94 V-0
Gender Female
Glow Wire Compliant Non-compliant
Housing Material Thermoplastic
Insulation Resistance 1 GΩ
Lead Pitch 2.54 mm
Material Brass
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 6
Number of Contacts 6
Number of Positions 6
Number of Rows 1
Operating Supply Voltage 250 V
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Through Hole
Voltage Rating 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1039911-70555-0040
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 70555-0040 CAD Model

Description

The Molex 1039911-70555-0040 is a 6 position, 2.54mm pitch, and right-angle orientation connector.

  • Positions: 6
  • Pitch: 2.54mm
  • Orientation: right-angle
  • Color: black
  • Category: Circular Connectors - Housings
  • Gender: female
  • Housing Material: thermoplastic
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -40 °C
  • Contact Material: bronze
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Contacts: 6
  • Contact Plating: gold
  • Contact Resistance: 30 mΩ
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
