Same model may have multiple batches, images only for reference.

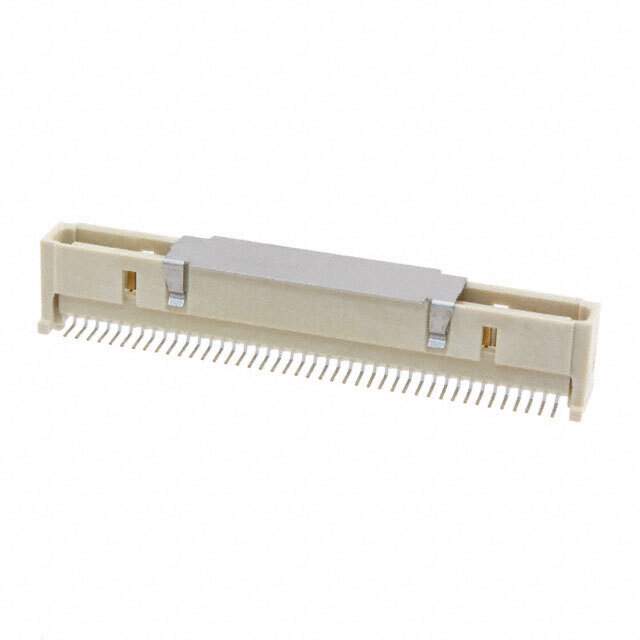

0717410002 Real Image
Same model may have multiple batches, images only for reference.

0717410002

Part No 0717410002
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN PLUG 84POS SMD GOLD / 84 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Molex
Packaging Reel - TR
Connector Type Plug, Center Strip Contacts
Number of Positions 84
Pitch 0.039" (1.00mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 10mm, 12mm, 15mm
Height Above Board 0.327" (8.30mm)
Base Product Number 071741
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM3498TR,071741-0002,WM3498CT,717410002,71741-0002,WM3498DKR
Standard Package 380
Win Source Part Number 1332961-0717410002
Ultra Librarian 3D Model Ultra Librarian 0717410002 CAD Model

Description

The Molex 1332961-0717410002 is an edge type connector designed for use in a variety of electronic applications.

  • Connector Type: Plug
  • Contact Type: Center Strip Contacts
  • Positions: 84
  • Pitch: 0.039 inches (1.00mm)
  • Mounting: Surface Mount
  • Features: Board Guide
  • RoHS3 Compliant: Yes
  • REACH Affected: No
  • Packaging: Reel
